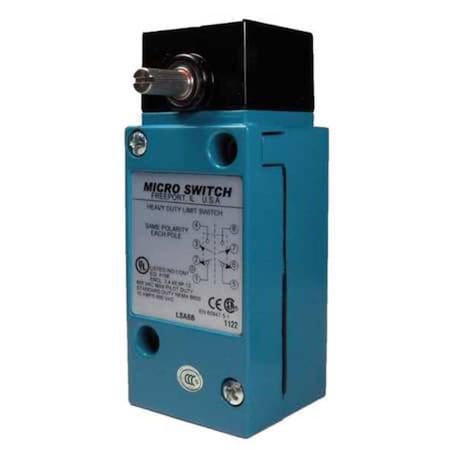

• Honeywell LSA6B - Limit Switch - Heavy Duty, Rotary, DPDT 10 A, Surface Mount, LSA Series
1 1

Honeywell LSA6B - Limit Switch - Heavy Duty, Rotary, DPDT 10 A, Surface Mount, LSA Series

Honeywell LSA6B - Limit Switch - Heavy Duty, Rotary, DPDT 10 A, Surface Mount, LSA Series

Brand: Honeywell SKU: LSA6B
$282.30 USD
$282.30 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Honeywell Heavy Duty Limit Switch from the LSA Series is a rotary-style, side-actuated switch rated for operation within the specified environmental and electrical parameters. It features a zinc die-cast body with plug-in configuration and surface mounting, supporting both clockwise (CW) and counterclockwise (CCW) actuation. The unit offers momentary action with a contact form of 2NC/2NO (DPDT), rated for 10A at 600V AC or 10A at 250V DC. No actuator lever is included.

Key features:

  • - Rotary head actuator style without lever; side actuator location
  • - Contact rating: 10A at 600V AC / 10A at 250V DC; DPDT (2NC/2NO)
  • - Surface mount with two diagonal mounting holes (0.20 in diameter, spacing: 2.34 in x 1.16 in)
  • - Body dimensions: Height – 4.69 in, Width –1.88 in, Depth –1.79 in
  • - Operating temperature range: 10°F to 250°F
  • - NEMA enclosure ratings: Types 1,12,13,3,4,4X,6,6P; housing constructed to meet IP65/66/67 standards as specified
  • - Electrical connection via screw terminals; wiring entry size: 1/2"-14 NPT
  • - Mechanical travel specifications include differential travel of7°, pretravel of15°, overtravel of60°
  • - Standards met: CCC, CE, CSA, UL
🏢
