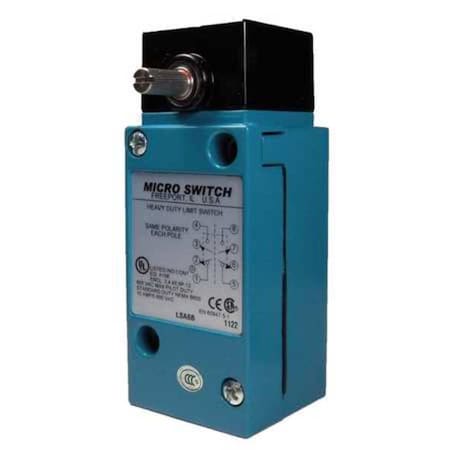

• Honeywell LSYAB6B - Limit Switch - Heavy-Duty, Rotary Head, 2 NC/2 NO, NEMA/IP Rated, LSY Series
1 1

Honeywell LSYAB6B - Limit Switch - Heavy-Duty, Rotary Head, 2 NC/2 NO, NEMA/IP Rated, LSY Series

Honeywell LSYAB6B - Limit Switch - Heavy-Duty, Rotary Head, 2 NC/2 NO, NEMA/IP Rated, LSY Series

Brand: Honeywell SKU: LSYAB6B
$536.27 USD
$536.27 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

The Honeywell Rated for use in applications as specified by manufacturer guidelines Limit Switch from the LSY Series is a rotary, momentary-action switch designed for surface mounting. It features a zinc die-cast body with no lever actuator included and utilizes screw terminals for electrical connection. The unit offers 2NC/2NO (DPDT) contact configuration and supports both clockwise (CW) and counterclockwise (CCW) directional movement.

Key features:

  • - Contact ratings: 10A at 600VAC / 10A at 250VDC
  • - Actuator style: Rotary head, no lever; side location
  • - Body dimensions: Height 4.69 in, Width 1.88 in, Depth 1.79 in
  • - Mounting: Surface mount with two diagonal holes (0.20 in diameter), spacing of 2.34 x 1.16 in
  • - Operating temperature range: -40°F to +250°F
  • - Enclosure ratings: NEMA types 1, 3, 4, 4X, 6, 6P,12,13; IP65/66/67 rated
  • - Electrical connection via screw terminals; wiring entry size is 1/2"-14 NPT
  • - Mechanical travel specifications include differential travel of 7°, pretravel of up to15°, overtravel minimum of60°
  • - Constructed with materials as specified; see product datasheet for material composition and relevant standards
🏢
