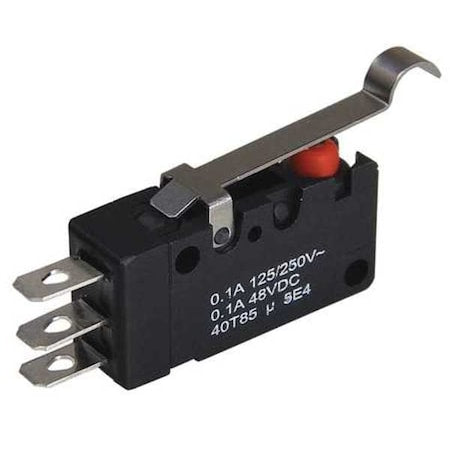

Honeywell V15W-DZ200A04-W2 - Snap Action Switch - V15 W Series, SPDT, Lever Roller, 5 A 240 V, IP67

Honeywell MICRO SWITCH V15W Series Miniature Snap Action Switch features a simulated roller lever actuator and is rated for operation within specified voltage and current ranges (up to 10 A). This switch is constructed with materials and features suitable for industrial environments, with an IP67-rated sealed housing that provides ingress protection as defined by the standard. Electrical connectivity is provided via 3/16 in quick connect terminals, and the unit carries certifications from CQC, ENEC, UL, and cUL.

Key features:

• - Actuator: Lever type with simulated roller; length 1.28"
• - Contact form: SPDT (1NO/1NC)
• - AC contact rating: 5 A @ 240 V
• - DC contact rating: 5 A @ 30 V
• - Body material: PBT polyester thermoplastic
• - Operating temperature range: -40°F to 185°F
• - Mounting dimension: 0.87 in centers; mounting hole diameter: 7/8 in
• - Differential travel maximum: 0.04 in; max pretravel: 0.13 in; overtravel: up to 0.07 in
• - Overall dimensions (WxHxD): 1.3 x 0.63 x 0.41 in
• - Terminal type: Quick connect
