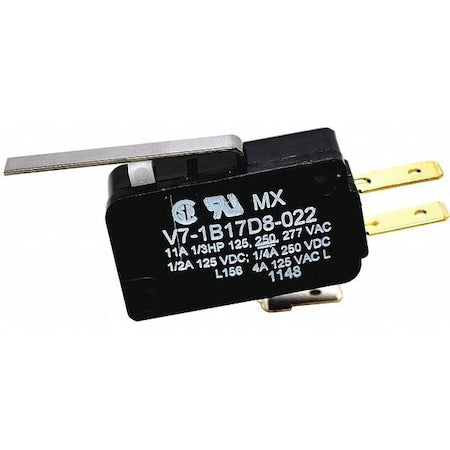

Honeywell V7-1B17D8-022 - Snap Action Switch - V7 Series, SPDT, Roller Lever, 11 A, Quick Connect

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is rated for operation within the specified environmental and electrical parameters in a compact thermoplastic housing. This switch features a short straight lever actuator with spring return and standard head action, which may be used in applications that require on/off limit detection or presence/absence sensing, subject to compatibility with product specifications. The device offers both normally open and normally closed contacts (SPDT) and supports quick connect terminals for straightforward installation.

Key Features:

• - Contact Rating: 11A at 125–277V AC; 0.25A at 250V DC; 0.5A at 125V DC
• - Actuator Style: Roller lever, short straight type with a length of 1.41"
• - Body Dimensions: Width—1.14", Height—0.63", Depth—0.4"
• - Housing Material: PCT polyester thermoplastic
• - Electrical Connection: Quick connect spade tabs (0.188" wide x 0.020" thick)
• - Mounting Hole Distance: Center-to-center spacing of 0.87"; hole diameter of 1/8"
• - Operating Force: Maximum of 2.8 ozf (0.80 N)
• - Travel Parameters: Pretravel up to 0.12", overtravel up to 0.067", differential travel max of 0.027"
• - Temperature Range: -40°F (-40°C) to +185°F (+85°C)
• - Standards Compliance: CSA, ENEC, RoHS, UL Listed
