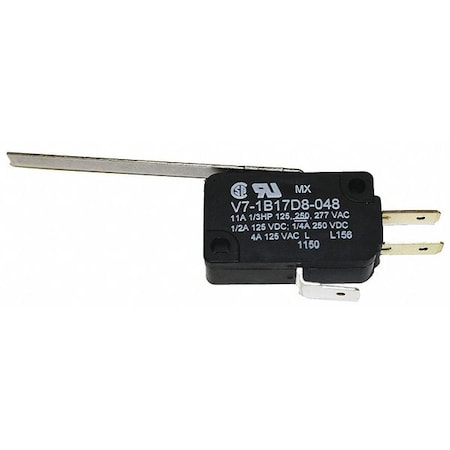

Honeywell V7-1B17D8-048 - Snap Action Switch - V7 Series, SPDT, Long Lever, 11 A 277 V AC, QC Terminals
Honeywell V7-1B17D8-048 - Snap Action Switch - V7 Series, SPDT, Long Lever, 11 A 277 V AC, QC Terminals
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with PCT polyester thermoplastic housing and rated for operation within specified parameters.
Key Features:
- - Actuator: Long straight lever, 2.34" length
- - Contact Form: SPDT (1NO/1NC)
- - Electrical Ratings: AC—11A @ 277V; DC—0.5A @ 125V, 0.25A @ 250V
- - Operating Force: Maximum of 1.7 ozf
- - Travel Parameters: Pretravel—0.235", Overtravel—0.115", Differential travel—0.03"
- - Mounting Dimensions: 0.87" centers, mounting hole diameter of 1/8"
- - Body Size: Width—1.14", Height—0.63", Depth—0.4"
- - Terminal Type: Quick connect terminals compatible with standard installation practices
- - Housing Material: Polyester thermoplastic
- - Temperature Range: -40°F to 185°F standard; options up to 347°F available
- - Standards Compliance: CSA, ENEC, RoHS, UL Listed
