• Honeywell V7-1C17D8-263 - Snap Action Switch - V7 Series, Lever Actuator, SPDT, 15.1 A, Miniature
1 1

Honeywell V7-1C17D8-263 - Snap Action Switch - V7 Series, Lever Actuator, SPDT, 15.1 A, Miniature

Honeywell V7-1C17D8-263 - Snap Action Switch - V7 Series, Lever Actuator, SPDT, 15.1 A, Miniature

Brand: Honeywell SKU: V7-1C17D8-263
$5.33 USD
$5.33 USD
Sale Out of Stock - Call to Order
In Stock — Ships TODAY if ordered before 2:00 PM EST
OEM manufacturer warranty Genuine factory-sourced

Ships factory-new in original packaging.

📋 Request a Commercial Quote / PO

Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.

Official TIPS Contract Awarded Vendor Badge

TIPS Contract Vendor

Officially awarded purchasing cooperative vendor.

✓

Why Buy From Us

Every quote personally reviewed. Direct sourcing from top manufacturers.

View full details

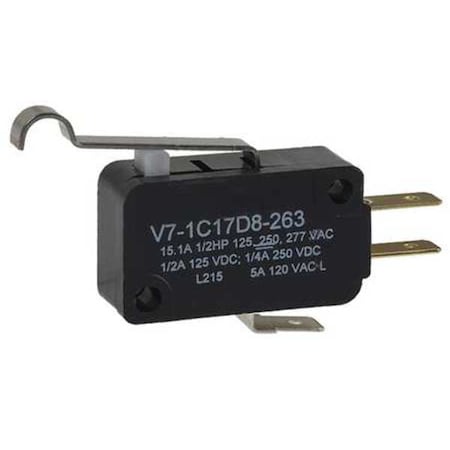

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch features a lever actuator with a simulated roller, rated for use in on/off limit and presence/absence sensing applications within specified parameters. The switch is housed in a PCT polyester thermoplastic body and offers SPDT (Single Pole Double Throw) contact configuration. It operates with an actuation force of 3.2 ozf and supports both AC and DC voltage ratings.

Key Features:

  • - Contact Ratings: 15.1A at 125–277V AC; 0.25A at 250V DC; 0.5A at 125V DC
  • - Actuator Type: Lever, Simulated Roller; length: 1.29"
  • - Body Dimensions: Width – 1.14", Height – 0.63", Depth – 0.4"
  • - Mounting Hole Distance: Center-to-center spacing of 0.87"; hole diameter of 1/8"
  • - Electrical Connection: Quick connect terminals (spade tab, .188" wide x .020" thick)
  • - Differential Travel: Maximum of 0.025"; Overtravel up to 0.061"; Pre-travel maximum of 0.11"
  • - Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
  • - Standards Compliance: CSA, ENEC, RoHS, UL Listed
🏢
