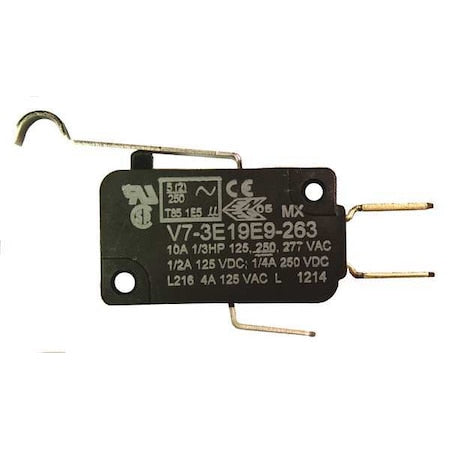

Honeywell V7-3E19E9-263 - Miniature Snap Action Switch - SPDT, Lever Roller, 10 A, Quick Connect

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with a compact thermoplastic housing. This switch features a lever actuator with a simulated roller, providing versatility for various on/off limit and presence/absence sensing tasks. The unit offers SPDT (Single Pole Double Throw) contact configuration and supports both AC and DC operations.

Key Features:

• - Contact Ratings: 10A @ 125–250VAC; 0.5A @ 125VDC; 0.25A @ 250VDC
• - Actuator Style: Lever with simulated roller, length of 0.97"
• - Body Dimensions: Width 1.14", Height 0.63", Depth 0.4"
• - Mounting Hole Distance: Center-to-center spacing of 0.87"; hole diameter of 1/8"
• - Electrical Connection: Quick connect terminals (spade tab, 0.250" wide x 0.032" thick)
• - Operating Force: Maximum of 1.1 ozf (33 gf)
• - Differential Travel: Maximum of 0.03"
• - Overtravel: Up to 0.075"; Pre-travel maximum of approximately 0.106"
• - Housing Material: PCT polyester thermoplastic
• - Operating Temperature Range: -40°F to +185°F (-40°C to +85°C)
• - Standards Compliance: CSA, ENEC, RoHS, UL Listed
