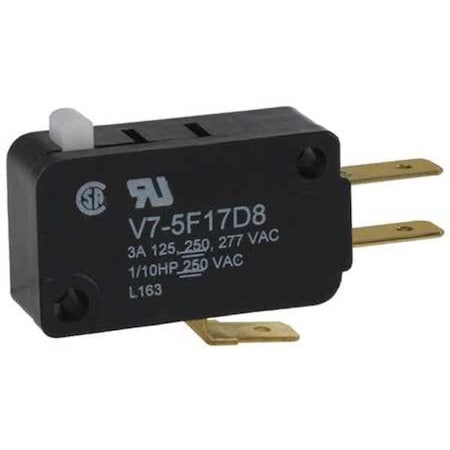

Honeywell V7-5F17D8 - Snap Action Switch - V7 Series, SPDT, Pin Plunger, 3 A, Miniature

Honeywell’s MICRO SWITCH V7 Miniature Snap Action Switch is constructed with a compact thermoplastic housing. This switch features a pin plunger actuator and supports single-pole double-throw (SPDT) operation, making it suitable for use in various on/off limit or presence/absence sensing applications. The device provides actuation within the specified operating force range and can be integrated into assemblies requiring sensitive switching.

Key Features:

• - AC Contact Rating: 3A at 125V, 250V, or 277V AC
• - Actuator Type: Pin Plunger
• - Contact Form: SPDT (1NO/1NC)
• - Body Material: PCT Polyester Thermoplastic
• - Electrical Connection: 3/16 in Quick Connect terminals
• - Operating Force: Maximum of 0.53 ozf
• - Differential Travel Range: 0.002 to 0.010 in
• - Pretravel: Max. 0.047 in; Overtravel: 0.05 in
• - Mounting Dimensions: Centers at 0.87 in; Hole Diameter of 1/8 in
• - Overall Size (W x H x D): 1.14 x 0.63 x 0.4 in
• - Operating Temperature Range: -40°F to +365°F
• - Standards Compliance: CSA, ENEC, RoHS, UL Listed
