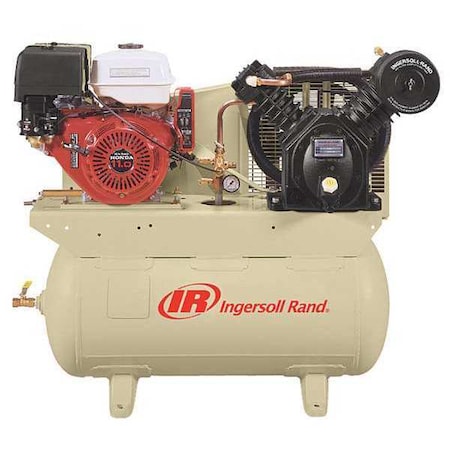

Ingersoll-Rand 2475F13GH - 2475 F13 GH Air Compressor + Honda Engine, 2 Stage, 13 hp, 30 Gal Tank

The Ingersoll Rand 2475F13GH is a heavy-duty, stationary air compressor This unit is powered by a 13 HP Honda engine, providing high-capacity pneumatic power locations without access to electricity. It is built on a 30-gallon horizontal ASME-coded tank and features the Type 30 all-cast-iron pump.

Technical Specifications:

• - Engine: 13 HP Honda (Gasoline)
• - Airflow: 24.0 CFM at 175 psi
• - Pump Speed: 1,500 RPM
• - Tank Capacity: 30 Gallon Horizontal (ASME/CRN)
• - Start Type: Electric with Recoil Backup
• - Dimensions: 45" L x 22" W x 41" H
• - Weight: 469 lb

  Mechanical Configuration:

  • - The system is equipped with an automatic idle control that regulates engine speed based on tank pressure, idling at 175 psi and resuming full throttle at 145 psi. The Type 30 pump is splash-lubricated and includes a finned copper intercooler to manage operating temperatures during continuous use. An integrated alternator is included to maintain the battery for the electric starter.

    Operational Features:

    • - Safety Systems: Includes low oil shutdown for engine protection and a manual drain valve for tank maintenance.
    • - Componentry: Features a pilot valve control, pressure gauge, and ASME-approved safety relief valves.
    • - Pneumatic Connection: Standard 1/2-inch Female NPT outlet.
