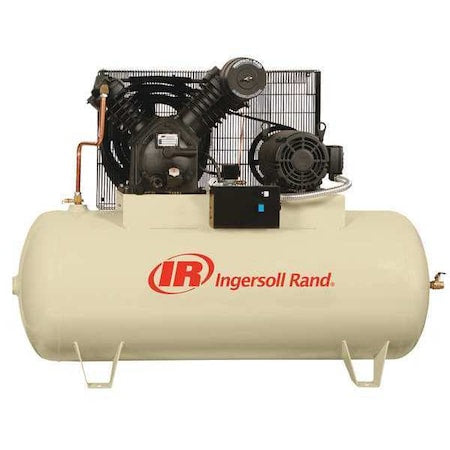

Ingersoll-Rand 2545E10-V-460/3 - 2545 E10-V-460/3 10 hp Electric Air Compressor, 2 Stage

The Ingersoll Rand 2545E10-V-460/3 is a stationary electric air compressor. This model features a two-stage reciprocating pump mounted on a 120-gallon horizontal ASME-coded receiver tank.

Performance Specifications:

• - Airflow Capacity: Delivers a consistent 35.0 CFM at a maximum operating pressure of 175 psi.
• - Power Output: Equipped with a 10 HP Open Dripproof (ODP) motor.
• - Electrical Requirements: Configured for 460V (effectively 480V AC), 3-phase power at 60 Hz, with a current rating of 13.3 Amps.
• - Pressure Settings: Features a factory-set pressure switch that turns on at 135 psi

  Construction and Maintenance:

  • - 100% Cast Iron Design: The pump utilizes individually cast iron cylinders in a V-type configuration for cooling and 100% continuous duty.
  • - Splash Lubrication: Lubrication system with a 2.3-quart oil capacity and an integrated oil sight glass for level monitoring.
  • - Expected Longevity: Designed for a life expectancy of over 15,000 hours of use.

    Standard Features and Standards:

    • - Physical Dimensions: Measures 72 inches long, 29 inches wide, and 52 inches high, with a total tool weight of approximately 835 to 900 lbs.
    • - Sound Level: Operates at approximately 83.0 dBA measured at three feet.
