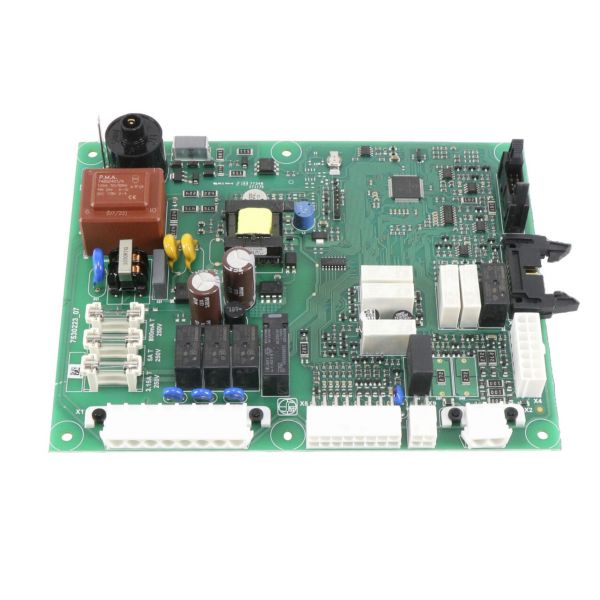

INTEGRATED BOARD
INTEGRATED BOARD
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
This advanced integrated control system serves as the primary processing unit for Lochinvar boiler units, managing combustion sequences, safety interlocks, and temperature modulation. The 100167821 control board is engineered to provide precise command over heating cycles, ensuring the boiler maintains consistent thermal output while adhering to strict safety protocols.
The module functions by receiving real-time data from various sensors and thermostats, processing these inputs against factory-programmed logic to modulate gas valves, ignition components, and circulator pumps. By centralizing these operations, it minimizes downtime and maximizes the operational efficiency of the hydronic system.
Key System Performance Baselines:
- Logic Processing: Executes multi-stage burner firing sequences and safety monitoring.
- Communication Protocol: Maintains seamless data exchange between system sensors and actuators.
- Safety Interlocks: Monitors flame rectification and pressure switches for immediate system protection.
⚠️ Application Profile: Compatible with specific Lochinvar residential and light commercial boiler configurations requiring standardized integrated electronic control replacement.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 100167821 |
