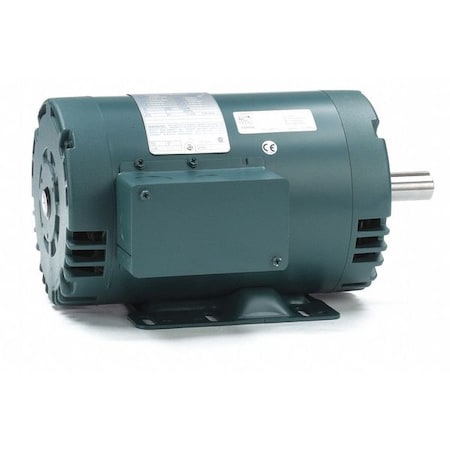

Leeson 145TTDR6028 - Three-Phase General Purpose Motor, 1 1/2 HP, 145 T Frame, 230/460 V AC Voltage, 1750 rpm Nameplate RPM

The LEESON - 145TTDR6028 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy, making it suitable for power transmission and pneumatics applications in various industrial and commercial settings. It's versatile enough to be used across different sectors including manufacturing lines and HVAC systems.

Key Features of the LEESON - 145TTDR6028 General Purpose Motor:

• CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
• Duty Cycle: This motor has a continuous duty cycle, suggesting it may operate for extended periods before requiring a rest period, which could indicate potential operational efficiency and endurance.
• Frame: Its frame size conforms to standard specifications ensuring compatibility with other machinery components.
• Full Load Amps: Draws maximum current of 4.8/2.4 A when operating at full capacity crucial for determining power supply requirements.
• Inverter Rated: Intended for use with variable frequency drives that may allow varying degrees of control over speed and torque
• Motor Bearings: Equipped with ball bearings intended to minimize friction between moving parts, potentially facilitating smoother operation under different load conditions
• Nominal Efficiency: Provides an energy performance measure of 86.5%, which suggests the potential effectiveness in converting electrical power into mechanical power
• Voltage Compatibility: Is rated for operation within voltage levels ranging from 200-230/440V AC up to 208-230/460V AC; operating outside these ranges could result in damage or performance loss
