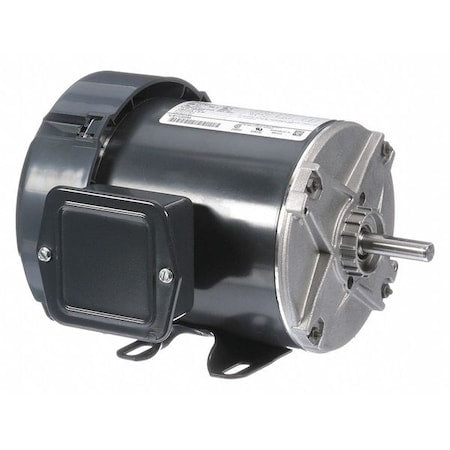

Leeson 5K32GN30 - Three-Phase General Purpose Motor, 1/4 HP, 48 Frame, 208-230/460 V AC Voltage, 1,725 Nameplate RPM

The LEESON - 5K32GN30 is a General Purpose Motor, classified under the category of 3-Phase AC Motors. This motor is designed to convert electrical energy into mechanical energy, making it an essential component in various industrial and commercial settings such as manufacturing lines and HVAC systems. It's widely used for power transmission and pneumatics applications.

Key Features of the LEESON - 5K32GN30 General Purpose Motor:

• Duty Cycle: The motor is rated for a continuous duty cycle, suggesting it can operate within specified conditions without prescribed rest periods.
• Frame: With a frame size of 48, this motor conforms to standard specifications for compatibility and interchangeability.
• Full Load Amps: Operating at full capacity, this motor draws between 1.3-1.4/0.70 A current which aids in determining power supply requirements.
• Horsepower (HP): With an HP rating of 45661, this motor is suitable for use in various industrial applications as per the manufacturer's specifications.
• Frequency (Hz): Operating at a frequency of 60 Hz influences its speed and performance efficiency.
• Insulation Class: The insulation class B indicates that the maximum temperature at which the motor's insulation can operate effectively without deteriorating over time
• Ambient Temperature: Rated to operate up to a maximum ambient temperature of 40 Degrees C. Performance may vary based on environmental conditions and usage patterns.
