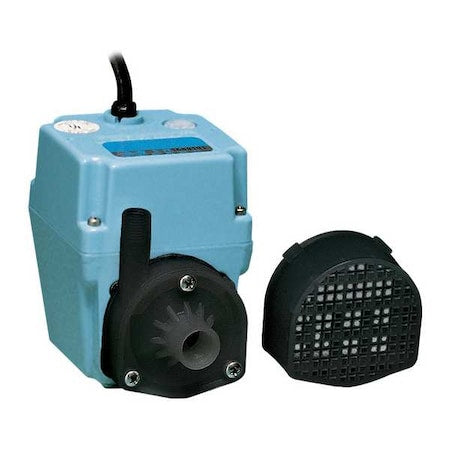

Little Giant Pump 502203 - Pump,5-1/2 In. L,3-1/2 In. W,4-3/4 In. H
Little Giant Pump 502203 - Pump,5-1/2 In. L,3-1/2 In. W,4-3/4 In. H
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The LITTLE GIANT PUMP 502203 is a compact submersible centrifugal pump from the 2E-38N Series for transferring or recirculating liquid in commercial, industrial, and residential applications. It is used in statuary fountains, water displays, air conditioners, and machine tool coolant systems. This pump has a 1/40 hp oil-filled direct-drive motor, a 3/8 in. FNPT intake, and a 1/4 in. MNPT discharge. It delivers up to 300 gph at 1 ft. of head, 205 gph at 5 ft., and 70 gph at 10 ft., with a maximum head of 11.8 ft.
Key Features of the LITTLE GIANT PUMP 502203:
- Oil-Filled Motor: 1/40 hp direct-drive motor with continuous duty operation.
- Flow Performance: Pumps up to 300 gph at 1 ft. of head.
- Maximum Head: Shut-off head of 11.8 ft.
- Port Sizes: 3/8 in. FNPT intake and 1/4 in. MNPT discharge connection.
- Pre-Filter Screen: Snap-on screen helps reduce debris reaching the impeller.
- Housing Materials: Epoxy-coated die-cast aluminum pump housing with nylon housing and impeller components listed.
- Electrical: 115V AC, 60 Hz, 1.7 A, with a 6 ft. cord.
- Temperature Limit: Maximum media temperature of 120 degrees F.
- Protection: Includes overload protection.
- Listings: UL and cCSAus Listed.
