Little Giant Pump 518200 - Submersible Pump, 0.6 A, 115 V AC, 1/125 hp, 7 ft Max Head, 1/4 in Intake and Disch, Epoxy Encap

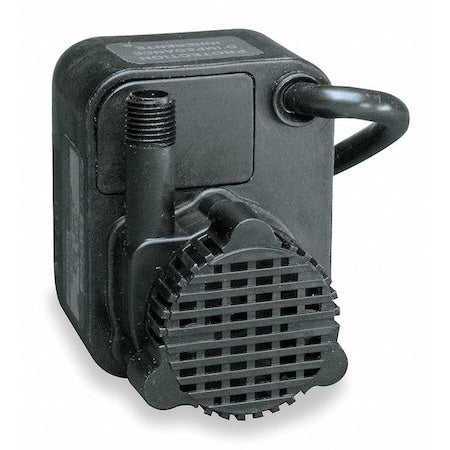

The LITTLE GIANT PUMP 518200 PE-1 Series is a compact submersible centrifugal pump for water transfer, recirculation, and water displays. It uses a 1/125 hp epoxy encapsulated direct-drive motor and operates on 115V AC with a plug-in 6 ft power cord. This pump delivers up to 170 gph at 1 ft of head, up to 100 gph at 5 ft of head, and has a maximum head of 7 ft. It is used in applications such as statuary fountains, water displays, air conditioners, and machine tools.

Key features:

• Submersible design: Intended for operation while submerged in water.
• Flow rate: 170 gph at 1 ft of head and 100 gph at 5 ft of head.
• Maximum head: 7 ft shut-off head capability.
• Motor: 1/125 hp direct-drive motor with epoxy encapsulation.
• Power supply: 115V AC, 60 Hz, 0.6 A.
• Electrical connection: Plug-in design with 6 ft power cord.
• Discharge connection: 1/4 in male NPT outlet; accepts 1/2 in ID flexible tubing.
• Screened inlet: Helps limit debris from entering the pump.
• Materials: Polypropylene housing and impeller with a nitrile mechanical seal.
• Duty: Continuous duty operation.
• Overload protection: Impedance protected motor with overload protection.
• Size: Approximately 3.5 in long, 2.8 in wide, and 3.6 in high.
• Listings: UL and cCSAus listed.
