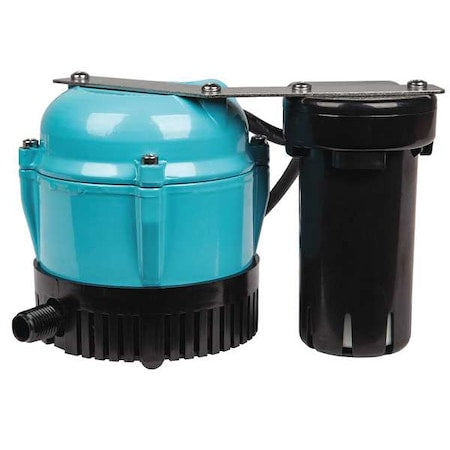

Little Giant Pump 550521 - 1/150 HP,120 Volt Condensate Pump

The LITTLE GIANT PUMP 550521 is an in-pan condensate removal pump for removing water from an air conditioner drain pan or reservoir. It uses a sealed, submersible centrifugal pump with a screened intake and float switch activation for automatic start and stop. This 1-ABS Series unit is designed for shallow pan applications and has no reservoir, with turn-on at 1.75 in and shut-off at 1.25 in.

Key Features of the LITTLE GIANT PUMP 550521 Condensate Removal Pump:

• Application: Built for condensate removal with clear water media.
• Pump type: In-pan, submersible design for placement in shallow drip trays and pans.
• Motor: 1/150 hp oil-filled motor, 70 W, 115/120V AC, single phase, 60 Hz.
• Automatic operation: Mechanical float switch starts and stops the pump automatically.
• Flow performance: 205 GPH at 1 ft of head, 145 GPH at 5 ft, and 25 GPH at 9 ft; maximum head 10 ft.
• Construction: Epoxy-coated cast aluminum housing and motor cover, nylon volute, and stainless steel shaft with Nitrile shaft seal.
• Discharge connection: 1/4 in MNPT discharge; includes a 90 degree 1/4 in MNPT adapter for use with 1/2 in discharge pipe.
• Intake: Screened submersible inlet with removable inlet filter screen.
• Electrical connection: 9 ft cord with plug-in connection.
• Temperature limits: Maximum ambient and media temperature of 120 degrees F; minimum media temperature of 33 degrees F.
• Protection: Thermal overload protection.
• Size: 7.44 in L x 3.75 in W x 4.31 in H.
• Standard: cCSAus.
