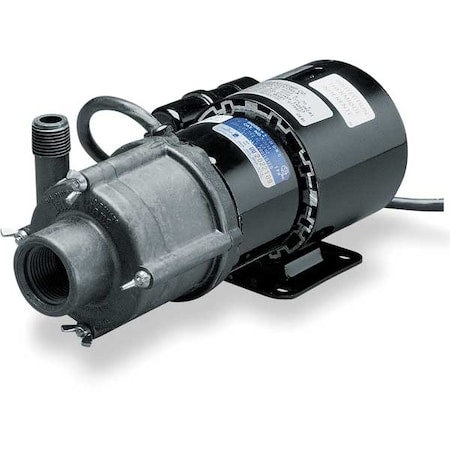

Little Giant Pump 581604 - 1/25 HP PPS Magnetic Drive Pump 115 V 1/2" FPT
Little Giant Pump 581604 - 1/25 HP PPS Magnetic Drive Pump 115 V 1/2" FPT
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The LITTLE GIANT PUMP 581604 is a magnetic drive pump for transferring highly corrosive chemicals and solutions in in-line, non-submersed applications. Its seal-less magnetic drive is designed to eliminate seal-caused friction loss, wear, contamination, and leakage. This MD-HC Series pump uses a 1/25 hp totally enclosed fan-cooled motor and is configured for gravity-feed operation, requiring the pump inlet to be lower than the liquid level.
Key Features:
- Seal-less magnetic drive: Designed for corrosive chemicals and solutions while reducing leakage and seal-related wear.
- Construction materials: Glass-filled polyphenylene housing and volute, carbon impeller components, ceramic shaft and thrust washers, and FKM gasket/O-ring materials.
- Motor: 1/25 hp shaded pole motor with totally enclosed fan-cooled enclosure, single phase, 115V AC, 60 Hz.
- Run dry capability: Can run dry for up to 8 hours.
- Flow performance: Up to 9.2 gpm at 3 ft of head, 8.1 gpm at 6 ft, 6.5 gpm at 9 ft, and 2.6 gpm at 15 ft.
- Maximum head: 16.3 ft.
- Connection size: 1/2 in inlet and 1/2 in discharge with NPT threads.
- Liquid handling limits: Maximum specific gravity 1.1, maximum viscosity 100 SSU, and media temperature up to 200°F.
- Installation details: Horizontal mounting design for non-submersed, gravity-feed use.
- Power cord: 6 ft 3-conductor SJO cord with 3-prong molded plug.
