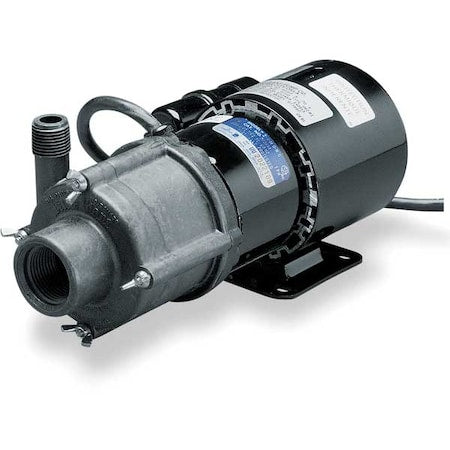

Little Giant Pump 582604 - 1/10 HP PPS Magnetic Drive Pump 115 V 1" FPT
Little Giant Pump 582604 - 1/10 HP PPS Magnetic Drive Pump 115 V 1" FPT
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The LITTLE GIANT PUMP - 582604 is a magnetic drive centrifugal pump with a 1/10 hp motor for transferring highly corrosive chemicals and solutions. It is designed for gravity-feed operation, with the pump inlet positioned below the liquid level, and uses a magnetic drive design that eliminates seal-caused friction loss, wear, contamination, and leakage. This pump has a maximum head of 24.3 ft, handles fluids up to 1.1 specific gravity and 100 SSU viscosity, and is rated for media temperatures up to 200 degrees F.
Key Features:
- Motor: 1/10 hp, 115V AC, single-phase, 60 Hz open TEFC permanent split capacitor motor.
- Flow performance: Up to 13.5 gpm at 3 ft of head; 9.2 gpm at 15 ft; 7.5 gpm at 18 ft; 1 gpm at 24 ft.
- Head pressure: Maximum head of 24.3 ft with maximum operating pressure of 10.5 psi.
- Materials: Glass-filled polyphenylene sulfide magnet housing and volute with carbon and glass-filled polyphenylene sulfide impeller.
- Internal components: Self-lubricating carbon impeller bushing with ceramic thrust washers and ceramic shaft.
- Seal material: Fluoroelastomer (FKM) O-ring/gasket.
- Connections: 1 in FNPT inlet and 1/2 in NPT discharge outlet.
- Run-dry capability: Can run dry for up to 8 hours.
- Mounting: Horizontal motor mounting.
- Power cord: 6 ft, 3-conductor SJO cord.
- Size: Approximate overall dimensions are 10.9 in L x 5.5 in W x 9 in H.
