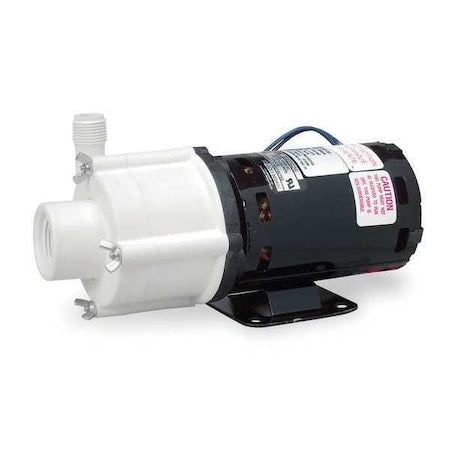

Little Giant Pump 583503 - 1/8 HP Polypropylene Magnetic Drive Pump 115 V 1" FPT

The LITTLE GIANT PUMP - 583503 is a magnetic drive pump from the MD-SC series for in-line, non-submersible use with mildly corrosive fluids such as acids, alkalis, plating, brine, and salt solutions. It uses a seal-less magnetic drive to reduce leakage and contamination associated with shaft seals. This pump has a 1/8 hp permanent split capacitor motor with an open fan-cooled enclosure, is designed for horizontal mounting, and is intended for gravity-feed installations where the pump inlet is below the liquid level.

Key Features of the LITTLE GIANT PUMP - 583503:

• Seal-less magnetic drive: Eliminates seal-caused friction loss, wear, contamination, and leakage.
• Construction materials: Glass-filled polypropylene housing, volute, and impeller with a Buna-N O-ring for chemical resistance.
• Ceramic internal parts: Ceramic shaft and thrust washers support wear resistance during operation.
• Performance: Delivers up to 16.5 gpm at 3 ft of head with a maximum head of 27.5 ft.
• Fluid handling limits: Rated for liquids up to 1.1 specific gravity and 100 SUS viscosity.
• Temperature limits: Maximum media temperature is 150 degrees F; maximum ambient temperature is 77 degrees F.
• Connections: 1 in FNPT inlet and 1/2 in NPT discharge.
• Electrical: 115V AC, single phase, 60 Hz, 2.0 A, with a 6 ft 3-conductor SJP power cord and 3-prong plug.
• Mounting: Horizontal motor mount for in-line, non-submersible installation.
