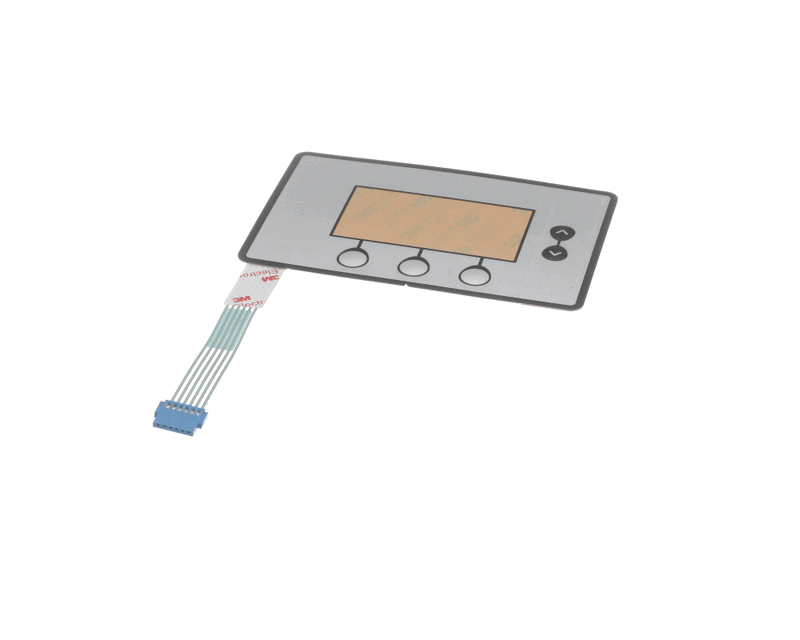

Lochinvar 100111538 - Display Overlay with Ribbon Cable, 6" x 4"
Lochinvar 100111538 - Display Overlay with Ribbon Cable, 6" x 4"
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Maintain precise oversight of your boiler’s operation with the Lochinvar 100111538 display overlay assembly. This user interface component acts as the primary visual bridge between the operator and the control panel, providing real-time status updates and facilitating seamless programming adjustments for LHC-119, LHC-50, LHC-80, LHS-119, and LHS-50 models.
This assembly functions by integrating a high-response overlay with a dedicated ribbon cable, establishing a reliable signal path between the user input interface and the internal control processor. It ensures consistent touch-sensitivity and screen clarity, which are necessary for monitoring critical diagnostic codes and temperature regulation settings without signal interference.
Key System Performance Baselines:
- OEM Calibration: Engineered to original factory specifications for precise fitment and electronic compatibility.
- Interface Integrity: Includes a high-grade ribbon cable to prevent connectivity degradation.
- Rugged Design: Built to withstand the environmental conditions of mechanical rooms while maintaining interface responsiveness.
⚠️ Application Profile: Specifically designed for professional repair or replacement in Lochinvar LHC and LHS series boiler control interfaces to restore operational status reporting.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 100111538 |
| Model Designation | LHC-119, LHC-50, LHC-80, LHS-119, LHS-50 |
| Dimensions | 6 in x 4 in x 0.01 in |
