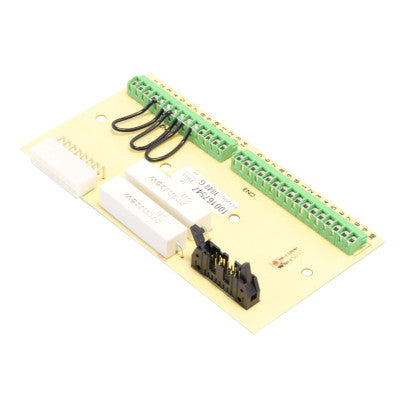

Lochinvar 100208467 - Low-Voltage Connection Board for AQUAS XPN 1.0-1.5, RLY20023
Lochinvar 100208467 - Low-Voltage Connection Board for AQUAS XPN 1.0-1.5, RLY20023
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Maintain precise control over your commercial pool system with this reliable interface module, specifically designed for Sync AQUAS XPN 1.0 to 1.5 units. The 100208467 low-voltage connection board, also known as RLY20023, provides the necessary input and output pathways to facilitate seamless communication between your primary boiler controls and pool heating management hardware.
This board operates by routing low-voltage signals across the pool package's control circuitry. It acts as a central hub for field wiring, allowing for the stable transmission of diagnostic data and command signals required to regulate heating performance, temperature setpoints, and system safety interlocks within the Sync AQUAS ecosystem.
Key System Performance Baselines:
- Enhanced Integration: Facilitates reliable connectivity for multi-stage low-voltage control sequences.
- OEM Engineering: Manufactured to precise Lochinvar specifications to ensure full hardware compatibility.
- Seamless Synchronization: Enables accurate data exchange between the pool heating package and the control interface.
⚠️ Application Profile: Authorized for use exclusively in Lochinvar Sync AQUAS XPN 1.0 through 1.5 commercial pool heating configurations for critical control system maintenance.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 100208467 |
| Alternate Part Number | RLY20023 |
| Compatibility | Sync AQUAS XPN 1.0 to 1.5 |
| Weight | 2.00 lb |
| Dimensions (H x W x D) | 5.998 in x 8.385 in x 6.731 in |
