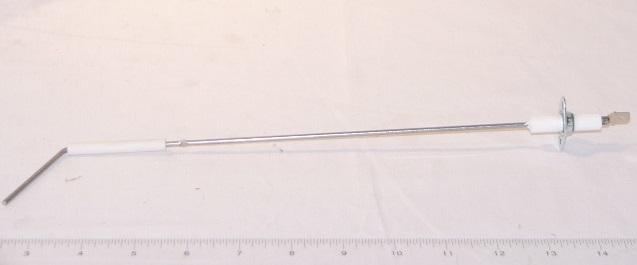

Lochinvar & A.O. Smith 100110701 - Flame Rod

Maintaining accurate burner flame detection is critical for the continuous operation of your hydronic system. The Lochinvar 100110701 flame rod serves as the primary sensor responsible for verifying ignition, ensuring your boiler cycles correctly and prevents fuel waste. By providing a clean signal to the ignition control module, this 100110701 replacement helps maintain consistent heat output and system reliability.

This device functions through flame rectification, where the rod is inserted into the flame path to create a small electrical current. As the flame burns, it acts as a conductor to close the circuit, signaling the control board that it is safe to maintain the gas valve in the open position. If the flame rod fails to detect this ionization, the system will initiate a safety lockout to prevent hazardous unburned gas accumulation.

Key System Performance Baselines:

• Flame Rectification: Converts AC signal to DC for accurate combustion verification.
• Signal Integrity: Provides clear conductivity between the flame and the control board.
• High-Temperature Durability: Engineered to withstand extreme combustion chamber environments.

⚠️ Application Profile: Designed specifically for use with compatible Lochinvar and A.O. Smith commercial boiler and water heater ignition systems.
