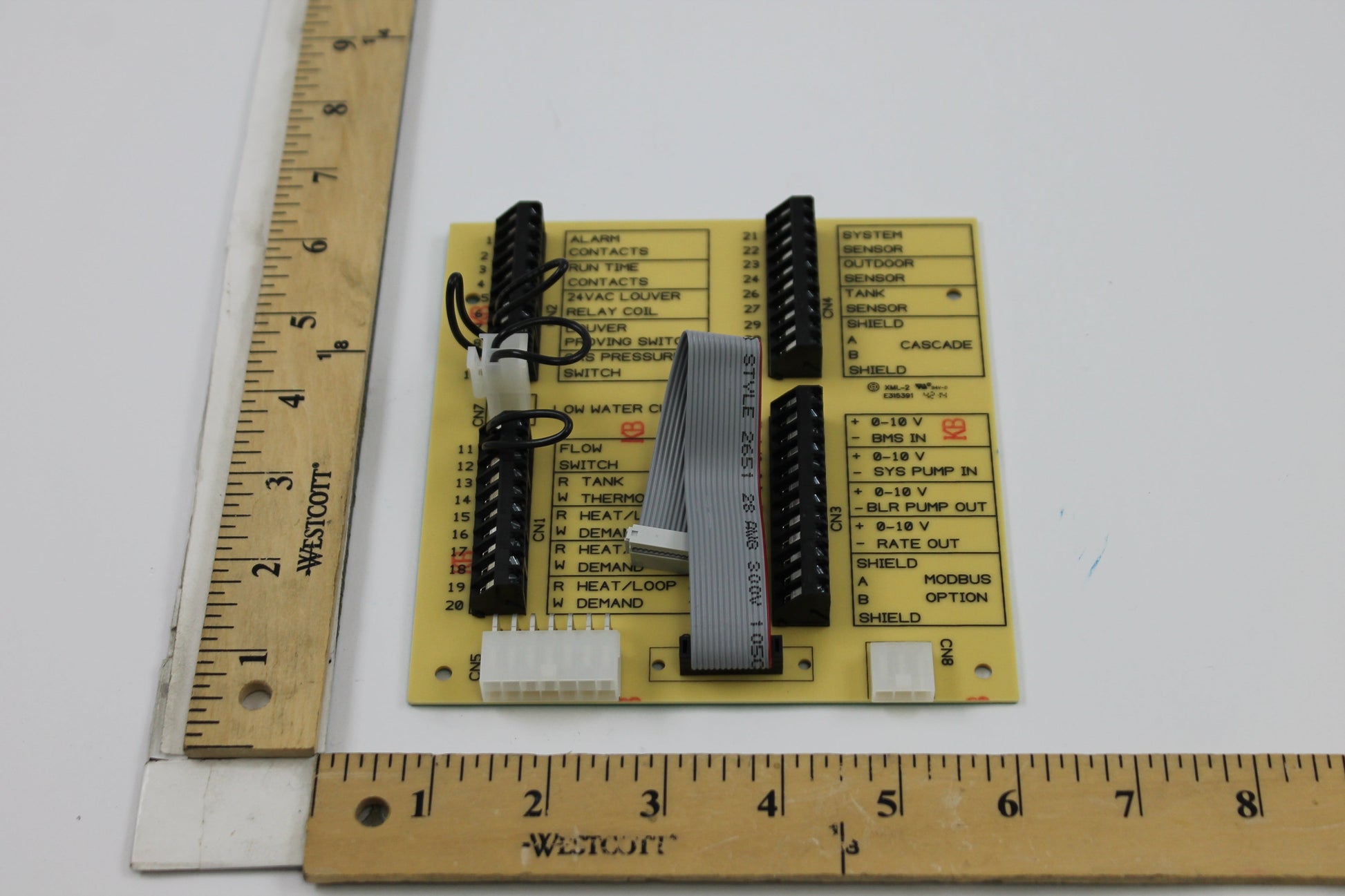

Lochinvar RLY20062 - Low-Voltage Connection Board
Lochinvar RLY20062 - Low-Voltage Connection Board
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
Maintain consistent electrical control in your heating system by replacing damaged components with the RLY20062 low voltage connection board. Designed specifically for integration with Lochinvar Knight (81-286), KB, XLP, and XP series boilers, this circuit board ensures accurate signal routing between your boiler controls and external thermostat or sensor inputs.
The board facilitates the low voltage communication loop necessary for automated boiler firing. By acting as the central interface point, it helps prevent intermittent connection failures that can lead to system lockouts or inconsistent heating performance, effectively managing the electrical integrity of your unit's logic interface.
Key System Performance Baselines:
- Electrical Precision: Dedicated circuitry designed to handle precise low voltage control signals.
- Seamless Integration: Engineered for direct fitment within the control housing of compatible Knight and KB series models.
- System Continuity: Eliminates signal loss in the thermostat and accessory control loops.
⚠️ Application Profile: Primarily used for repairing or upgrading control interfaces in Lochinvar Knight 81-286, KB, XLP, and XP series residential and commercial boilers.
| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | RLY20062 |
| Compatible Series | Knight, KB, XLP, XP |
| Device Category | Low Voltage Connection Board |
