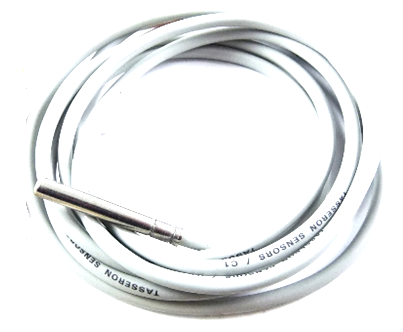

Lochinvar TST2409 Inlet/Outlet Bypass Sensor (82 inch) 100233518
Lochinvar TST2409 Inlet/Outlet Bypass Sensor (82 inch) 100233518
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →Product Description
Lochinvar TST2409 is an inlet/outlet bypass sensor that monitors inlet and outlet temperatures for proper bypass operation in Lochinvar Intelli-Fin IB and IW series boilers and water heaters. It uses a high-sensitivity thermistor in a 1/2 inch NPT threaded housing and includes an 82 inch lead for connection. The sensor maintains temperature differential for bypass control to reduce short-cycling and protect the heat exchanger as an OEM replacement.
- Inlet/outlet bypass temperature sensor for Intelli-Fin IB/IW 1500, 1700, 2000 series
- High-sensitivity thermistor element with 1/2 inch NPT threaded housing
- 82 inches end-to-end lead length for reach and connection; OEM part TST2409 / 100233518
Product Highlights
Inlet/outlet bypass sensing; 1/2 inch NPT; 82 inch lead
Product Information
Standard Information
- Brand: LOCHINVAR
- Manufacturer Part Number: TST2409
Technical Specifications
- Brand: Lochinvar
- MPN: TST2409
- Manufacturer Part Number: 100233518
- Item Name: Inlet/Outlet Bypass Sensor
- Function: Inlet/outlet bypass temperature sensing for bypass control
- Lead Length: 82 inches (end to end)
- Thread Size: 1/2 inch NPT
- Sensing Technology: High-sensitivity thermistor
- Compatibility: Intelli-Fin IB/IW 1500, 1700, 2000 and compatible Lochinvar IB/IW/IBL/IBN/IWL/IWN/PBL/PBN/PFL/PFN series models
- Manufacturer: A. O. Smith Corporation
- Housing Material: Brass or stainless (NPT threaded housing)
- Part Number (SKU): 100233518
