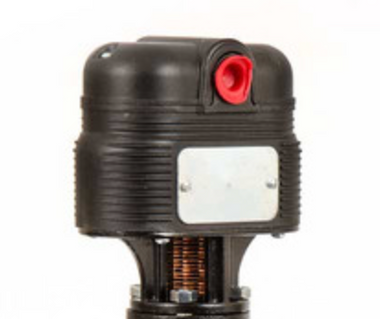

McDonnell & Miller 110300 Model 5 Reset Snap Switch
McDonnell & Miller 110300 Model 5 Reset Snap Switch
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 110300 |
| Model Designation | Model 5 |
The reset snap switch provides an immediate pressure release to protect boiler systems from over‑pressure conditions, helping maintain safe operation and extend equipment life. This **110300** unit is the **Model 5** replacement designed for McDonnell & Miller boilers.
When system pressure exceeds the preset limit, the internal spring‑loaded mechanism trips, opening the circuit and venting excess pressure. After the fault clears, the switch can be manually reset, restoring normal function.
Key System Performance Baselines:
- Pressure Rating: Rated for up to 250 psi, matching original specifications.
- Reset Action: Manual snap‑back reset ensures quick restoration after a trip.
- Compatibility: Direct drop‑in replacement for Model 5 boiler control panels.
- Electrical Rating: 120 V AC, 5 A coil for reliable actuation.
🚨 Application Profile: Ideal for commercial and industrial boiler systems, including hot‑water heating, steam generation, and process heating units where over‑pressure protection is required.
