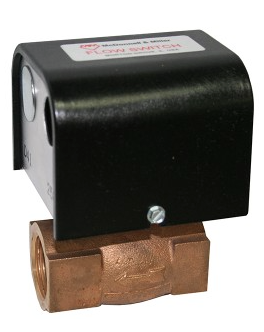

McDonnell & Miller 114763 FS5-D-3/4 3/4" Flow Switch with 2 SPDT Switches
McDonnell & Miller 114763 FS5-D-3/4 3/4" Flow Switch with 2 SPDT Switches
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 114763 |
| Model Designation | FS5-D-3/4 |
| Connection Size | 3/4-inch NPT |
This high-performance liquid flow switch is designed to monitor flow or no-flow conditions in pipes by utilizing a paddle-actuated mechanism. The McDonnell & Miller 114763, also known by the model FS5-D-3/4, is engineered for industrial and commercial hydronic applications where dependable signaling is required for pumps, chillers, or cooling systems.
The unit operates by inserting a paddle into the pipe stream, which moves as liquid flow pushes against it. This movement activates internal micro-switches, providing an electrical signal change. With its dual SPDT switch configuration, this device allows for simultaneous control of multiple circuits or redundant safety monitoring, ensuring your system responds accurately to changes in flow velocity.
Key System Performance Baselines:
- Switch Configuration: Includes two SPDT switches for versatile circuit control.
- Connection Size: Standard 3/4-inch NPT pipe connection for seamless integration.
- Reliability: Engineered for consistent, long-term operation in demanding fluid environments.
⚠️ Application Profile: Ideal for use in commercial HVAC, water treatment, booster pump systems, and industrial processing lines requiring precise flow detection and interlock protection.
