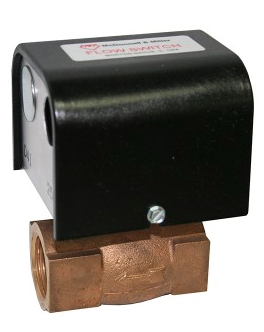

McDonnell & Miller 114780 FS5-1 1" Flow Switch
McDonnell & Miller 114780 FS5-1 1" Flow Switch
Couldn't load pickup availability
TIPS Contract Vendor
We are an officially awarded purchasing cooperative vendor.
📋 Procurement & Shipping Notice
- LTL Freight Dispatch: Heavy commercial units ship directly via insured LTL carrier with delivery coordination included.
- Project Timelines & Submittals: Need guaranteed delivery dates, formal submittals, or tax-exempt processing?
👉 Request a Commercial Quote or contact our procurement team for direct freight scheduling.
Corporate Procurement & PO Processing
Formal Purchase Orders (POs) and tax-exempt ordering are accepted for commercial contractors and institutional facilities.
Apply for Trade Account & Terms →| Performance Parameter | Engineering Baseline Value |
|---|---|
| Manufacturer Part Number (MPN) | 114780 |
| Model Designation | FS5-1 |
| Connection Size | 1 inch |
Maintain precise control over your hydronic heating or cooling systems with the McDonnell & Miller 114780 FS5-1 flow switch. This critical component is engineered to accurately detect liquid flow, ensuring that equipment only operates when necessary to prevent dry firing or circulation failures. By integrating this 1-inch flow switch into your plumbing infrastructure, you ensure seamless automation and protection for your pumps, boilers, and heat exchangers.
The FS5-1 functions by utilizing a paddle mechanism that reacts to the kinetic energy of the fluid within the pipe. When flow is detected, the paddle deflects, mechanically actuating a snap-action switch that completes or breaks an electrical circuit to your system controls. This durable, time-tested design provides immediate feedback, allowing for responsive system monitoring and enhanced operational longevity.
Key System Performance Baselines:
- Durable Construction: Built to withstand rigorous industrial and commercial piping environments.
- Precise Detection: Engineered for sensitive and repeatable flow actuation.
- Reliable Integration: Provides seamless compatibility with standard 1-inch plumbing connections.
⚠️ Application Profile: Primarily utilized in commercial hydronic boilers, chiller systems, liquid transfer processes, and high-capacity water heating loops to provide essential flow proofing for automated equipment cycles.
