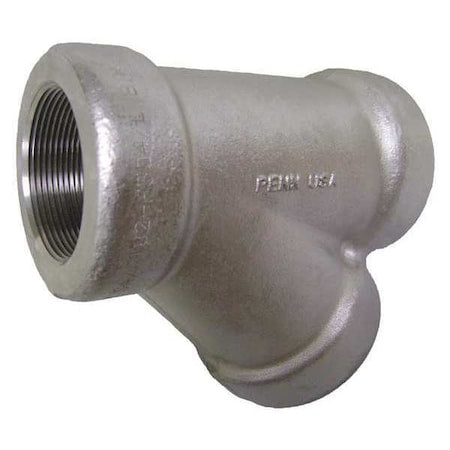

1000300612 - Stainless Steel,45 Elbow,1/2"NPTx1/2"NPT

The ZORO SELECT - 1000300612 is a 45 Degree Lateral stainless steel pipe fitting designed to connect branch lines to main runs at a 45° angle. Material: 304 Stainless Steel. This fitting features female NPT connections on all three ports, each sized at 1/2 inch nominal pipe size. Pressure Rating: 3000 psi maximum at 100°F. Applications: natural gas, non-potable water, and oil systems in process, drainage, and utility piping. The overall length of the fitting is 2 1/2 inches and it meets standards LF2 ASME B16.11 and SA182.

Key Features:

• - Material: 304 Stainless Steel
• - Configuration: 45 Degree Lateral with three female NPT connections
• - Nominal Pipe Size: 1/2 in on all ports
• - Connection Type: Female NPT threads with 14 threads per inch
• - Pressure Rating: 3000 psi maximum at 100°F
• - Temperature Range: -20°F to 100°F
• - Overall Length: 2 1/2 in
• - Applications: natural gas, non-potable water, and oil systems in process, drainage, and utility piping
• - Compliance: Meets LF2 ASME B16.11 and SA182 standards
• - Does not include pre-applied thread sealant or seals
