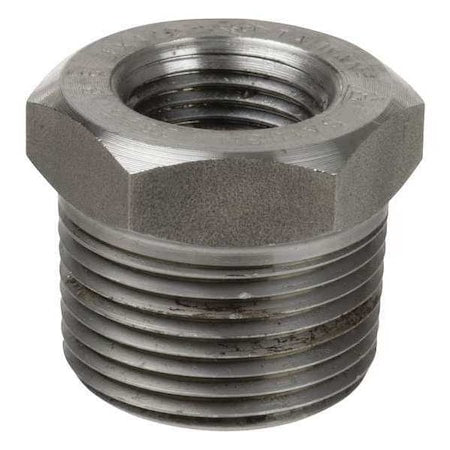

1RRN7 - 304 Stainless Steel Hex Reducing Bushing, 1/4 in Male NPT x 1/8 in Female NPT, Class 3000
1RRN7 - 304 Stainless Steel Hex Reducing Bushing, 1/4 in Male NPT x 1/8 in Female NPT, Class 3000
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ZORO SELECT - 1RRN7 is a hex reducing bushing made from 304 stainless steel, designed to connect pipes of different sizes by screwing into a larger female-threaded opening and providing a smaller male-threaded threaded connection. This bushing is rated to operate up to 3000 psi at 100°F and up to 2500 psi steam at 350°F. The fitting features MNPT x FNPT (male national pipe thread x female national pipe thread) connections with nominal pipe sizes of 1/4 inch on the male side and 1/8 inch on the female side. This bushing is made from 304 stainless steel; corrosion resistance and temperature tolerance are inherent material properties.
Key Features:
- - Material: 304 Stainless Steel
- - Fitting Shape: Hex Reducing Bushing
- - Connection Type: MNPT (male) x FNPT (female)
- - Nominal Pipe Size: 1/4" (male side A) x 1/8" (female side B)
- - Thread Size: 18 TPI (Side A male), 27 TPI (Side B female)
- - Pressure Rating: Class 3000, supporting up to 3000 psi @ 100°F
- - Steam Pressure Rating: 2500 psi @ 350°F
- - Standards: Material conforms to ASTM-A-182; threads conform to ANSI/ASME B1.20.1; meets ASME B16.11
- - Includes no pre-applied thread sealant or additional seal components
