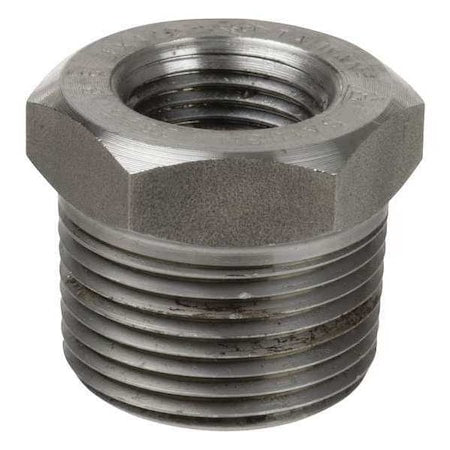

1RRP6 - Hex Reducing Bushing, 304 Stainless Steel, 1/2 in x 1/4 in, Male NPT x Female NPT, Class 3000

The ZORO SELECT - 1RRP6 is a hex reducing bushing made from 304 stainless steel, designed to connect pipes or fittings of different sizes by threading into a larger female opening and providing a smaller male-threaded connection. It features a hexagonal outer profile for wrench tightening to achieve a secure joint that is designed to form a seal when installed with appropriate thread sealant and tightened in accordance with manufacturer guidelines. This fitting is rated for a maximum pressure of 3000 psi at 100°F and a maximum steam pressure of 2500 psi at 350°F. The threads conform to ANSI/ASME B1.20.1 standards, and the fitting meets ASME B16.11 and ASTM-A-182 material specifications, making it intended for use in systems requiring corrosion resistance and elevated temperature service per ASTM A182 material specifications and related standards. Key Features:

• - Material: 304 Stainless Steel
• - Fitting Shape: Hex Reducing Bushing
• - Connection Type: Male NPT x Female NPT
• - Nominal Pipe Size: 1/2" (male) x 1/4" (female)
• - Threading: 14 TPI on male end, 18 TPI on female end
• - Pressure Class: Class 3000
• - Max. Pressure Rating: 3000 psi @ 100°F
• - Max. Steam Pressure Rating: 2500 psi @ 350°F
• - Standards: ASTM A182 for material; ANSI/ASME B1.20.1 for threads; ASME B16.11
• - No pre-applied thread sealant or included seals
