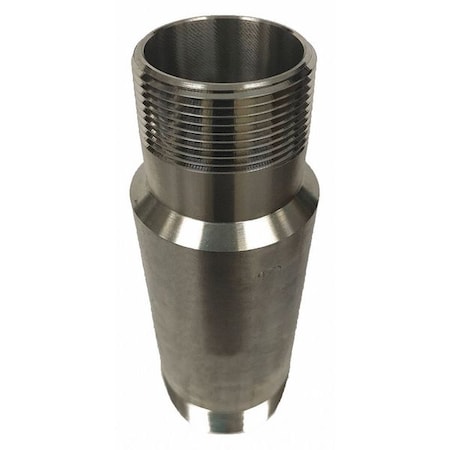

N/A 3974833312 - 2" x 1" 304/304 L Stainless Steel Swage Nipple Sch 80

The ZORO SELECT - 3974833312 is a stainless steel swage nipple designed to provide a straight reduction between two pipes or fittings with different diameters. Made from 304/304L stainless steel, this fitting connects a 2-inch nominal pipe size on one end to a 1-inch nominal pipe size on the opposite end, both featuring threaded connections. Rated for use with natural gas, non-potable water, and oil within specified operating conditions. Maximum rated operating pressure: 3000 psi at 100°F. The fitting conforms to ASTM A403 WP304/L-S and MSS SP-95-2006 standards and is classified as Schedule 80 in pipe thickness.

Key Features:

• - Material: 304/304L stainless steel for corrosion resistance.
• - Connection Type: Threaded on both ends (Side A and Side B).
• - Size: 2 in (Side A) x 1 in (Side B) nominal pipe sizes.
• - Outside Diameter: 2 5/16 in (Side A) and 1 1/4 in (Side B).
• - Thread Size: 11 1/2 threads per inch on both ends.
• - Maximum Operating Pressure: 3000 psi @ 100°F.
• - Overall Length: 6 1/2 in.
• - Fitting Schedule: Schedule 80 for pipe wall thickness.
• - Standards Compliance: ASTM A403 WP304/L-S; MSS SP-95-2006.
• - Designed for use with natural gas, non-potable water, and oil within rated operating conditions.
• - Includes no pre-applied thread sealant or sealing components.
