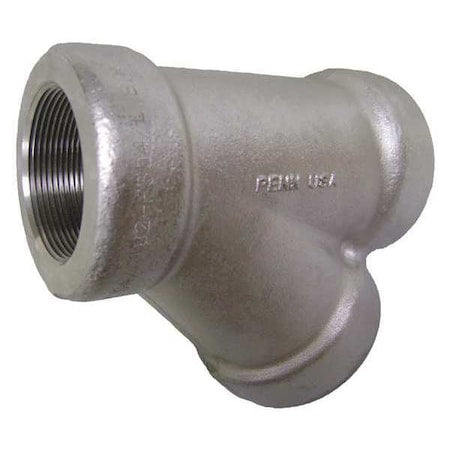

4000300618 - 2 in NPT 316 Stainless Steel 45-° Lateral Wye, Class 3000

The ZORO SELECT - 4000300618 is a 45 Degree Lateral stainless steel pipe fitting made from 316 stainless steel. It connects a branch line to a main run at a 45° angle, and provides a 45-degree lateral connection for branching. This fitting has female NPT threaded connections on all three ends, each sized for 2-inch nominal pipe. It is rated for a maximum operating pressure of 3000 psi at 100 degrees F and is for use with fluids compatible with 316 stainless steel within the specified pressure and temperature limits (−20°F to 100°F, up to 3000 psi). The overall length of the fitting is 6 inches. Key Features:

• - Material: 316 Stainless Steel.
• - Shape: 45 Degree Lateral with three female NPT connections.
• - Nominal Pipe Size: 2 inches for all three ports.
• - Connection Threading: 11 1/2 TPI NPT threads on Side A, Side B, and Side C.
• - Pressure Rating: Class 3000, maximum operating pressure 3000 psi @ 100°F.
• - Temperature Range: -20°F to 100°F.
• - Color: Silver.
• - Standards: LF2 ASME B16.11, SA182.
• - Does not include pre-applied thread sealant or sealing components.
