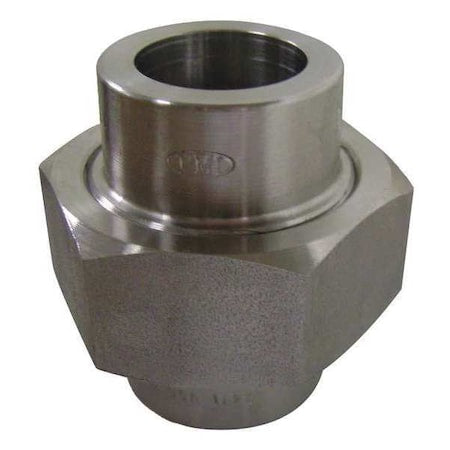

4001301718 - 2 in 316 Stainless Steel Socket Weld Union, Class 3000, Female-Female

This stainless steel pipe union is a three-piece mechanical fitting designed to connect two pipe ends, allowing for assembly and disassembly without rotating the pipes. Constructed from corrosion-resistant stainless steel, the sealing capability is rated to withstand up to 3000 psi at 100°F, in compliance with MSS SP83 and SA182.

Key Features:

• - Material: 316 Stainless Steel for corrosion resistance and durability
• - Application: Compatible with Natural Gas, Non-Potable Water, and Oil systems within the rated pressure and temperature specifications
• - Shape: Union shape enabling connection/disconnection
• - Connection Type: Socket Weld, with female and male genders on sides A and B
• - Fitting Schedule/Class: Class 3000, indicating the pressure rating
• - Standard: MSS SP83, SA182 for compliance
• - Max Pressure: 3000 psi at 100°F
• - Overall Length: 3 3/8 in
• - Material Grade: 316
• - Fitting Side A & B: Female connections with nominal size 2 in
• - Fitting Side B Outside Diameter: 2 15/16 in
• - Fits with 2 in pipes and fittings, operating temperature range: -20°F to 100°F
