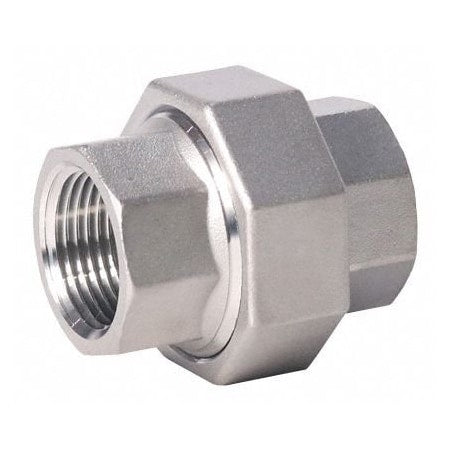

400U111N010 - 304 Stainless Steel Union, 1 in x 1 in Fitting Pipe Size, Female NPT x Female NPT, Class 150

The ZORO SELECT - 400U111N010 is a stainless steel pipe union designed to connect two 1-inch pipe ends through female NPT threaded connections on both sides. This three-piece fitting (body, nut, and mating seat) enables joining or disconnection without requiring pipe rotation, as designed. Constructed from 304 stainless steel; intended for use with fluids within the device's chemical compatibility and Class 150 pressure rating; verify fluid compatibility via the material data sheet. It is rated for Class 150 pressure, with a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi. Key Features:

• - Material: 304 Stainless Steel meeting ASTM-A-351; threads conform to ASME B1.20.1.
• - Connection Type: Female NPT threaded on both sides with 11 threads per inch.
• - Nominal Pipe Size: 1 inch for both ends; outside diameter of 1 inch on each side.
• - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi.
• - Hex Size: 52.5 mm across flats for wrench application.
• - Includes no pre-applied thread sealant and no sealing components.
• - Overall Length: 47.5 mm.
• - Compliance: Meets MSS-SP-114 Class 150 pressure standards; low lead compliant for potable water use.
