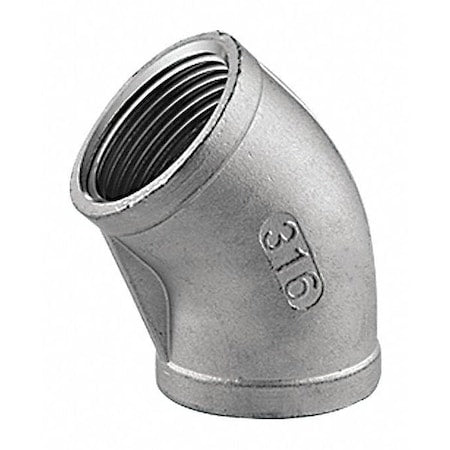

404E111N012 - 1/2 in FNPT 304 Stainless Steel 45° Elbow, Class 150

The ZORO SELECT - 404E111N012 is a 45 Degree Elbow stainless steel pipe fitting provides a 45-degree bend in the flow path. Constructed from 304 stainless steel, it connects same-size pipe runs and provides media compatibility: air, natural gas, non-potable water, oil, potable water, and steam within rated Class 150 pressure (up to 300 psi). The fitting has female NPT threaded connections on both ends, sized at 1/2 inch nominal pipe size, and is rated for Class 150 pressure with a maximum operating pressure of 300 psi. It conforms to ASTM-A-351 for material, ANSME B1.20.1 for threads, and meets MSS-SP-114 Class 150 pressure standards.

Key Features:

• - Material: 304 stainless steel
• - Configuration: 45 Degree Elbow shape for directional flow change
• - Connection Type: Female NPT threaded ends on both Side A and Side B
• - Pipe Size: 1/2 inch nominal pipe size on both ends
• - Pressure Rating: Class 150 with a maximum operating pressure of 300 psi
• - Media compatibility: air, natural gas, non-potable water, oil, potable water, and steam within rated Class 150 pressure (up to 300 psi)
• - Compliance: Meets low lead requirements for potable water use
• - Pipe Schedule Compatibility: Schedule 40
• - Thread Size: 14 threads per inch on both ends
• - Color: Silver
• - No pre-applied thread sealant or included sealing components
