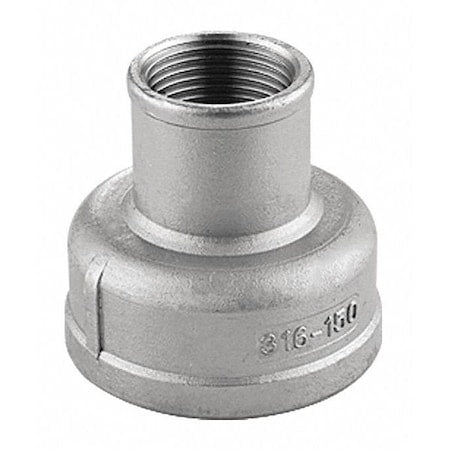

40RC111N020010 - 2" x 1" FNPT 304 SS Reducing Coupling

The ZORO SELECT - 40RC111N020010 is a stainless steel reducing coupling made from 304 stainless steel, reducing coupling from 2" (Side A) to 1" (Side B) to join pipes of different diameters (2x1 reducing coupling) with FNPT threads on both ends. This Class 150 coupling features female FNPT threaded connections on both ends, with nominal pipe sizes of 2 inches on Side A and 1 inch on Side B. Rated for Class 150 service with maximum operating pressure of 300 psi and maximum steam pressure of 150 psi; use only with fluids and conditions within these specifications and in accordance with applicable standards. The fitting conforms to ASTM-A-351 material standards, ANSI B1.20.1 thread specifications, and meets MSS-SP-114 Class 150 pressure ratings.

Key Features:

• - Material: 304 Stainless Steel
• - Fitting Shape: Reducing Coupling (Coupling)
• - Connection Type: Female FNPT threads on both ends
• - Nominal Pipe Sizes: 2" (Side A) x 1" (Side B)
• - Pipe Schedule/Class: Class 150
• - Maximum Operating Pressure: 300 psi
• - Maximum Steam Pressure: 150 psi
• - Includes no pre-applied thread sealant or additional seals
• - Overall Length: 66 mm
• - Color: Silver
• - Standards: ASTM-A-351, ANSI B1.20.1 threads, MSS-SP-114 Class 150 pressure ratings
