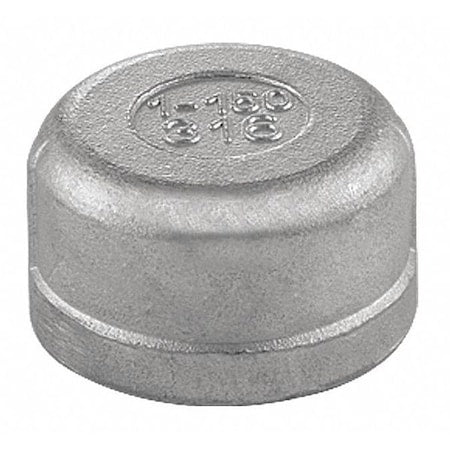

40RDC111N010 - 1 in FNPT 304 Stainless Steel Cap, Class 150, 300 psi

The ZORO SELECT - 40RDC111N010 is a stainless steel pipe fitting cap made from 304 stainless steel. It is rated for use within specified pressure and temperature parameters. This cap uses a female national pipe thread (FNPT) connection type with an 11 1/2 TPI threading on side A. It accommodates pipe schedule 40 and is suitable for use in piping systems requiring line termination, pressure testing, and extensions. The fitting is rated for operation within a temperature range of -20 to 350 degrees Fahrenheit.

Key Features:

• - Material grade: 304 Stainless Steel
• - Nominal pipe size: 1 inch
• - Connection type: FNPT with 11 1/2 threads per inch on Side A
• - Pressure class rating: Class 150, max operating pressure 300 psi
• - Maximum steam pressure rating: 150 psi
• - Compatible with pipe schedule 40
• - Overall length: 32.5 mm
• - Meets ASTM-A-351 material standard, ANSI/ASME B1.20.1 thread standard, and MSS-SP-114 Class 150 pressure rating
• - The fitting is rated for operation within a temperature range of -20 to 350 degrees Fahrenheit
• - Does not include pre-applied thread sealant or sealing components
• - Not magnetic
