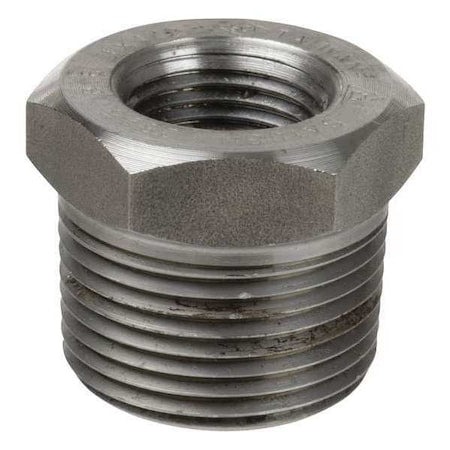

4307000206 - Hex Reducing Bushing, 304 Stainless Steel, 1/2 in x 1/8 in, Male x Female NPT, Class 3000

The ZORO SELECT - 4307000206 is a hex reducing bushing made from 304 stainless steel, designed to connect pipes of different sizes by reducing from a 1/2 inch female connection to a 1/8 inch male threaded connection. It features a hexagonal outer profile; tightening with a 7/8 inch across flats wrench. It is rated for Class 3000 pressure; made from 304 stainless steel with corrosion resistance; operating limits defined by maximum pressures/temperatures: 2,570 psi at 100°F and 1,965 psi at 350°F. Its threaded connections conform to ASME B1.20.1 NPT standards, and the fitting’s dimensions meet ASME B16.11 specifications with materials compliant with ASTM A182. Key Features:

• - Material: 304 Stainless Steel
• - Connections: 1/2" Female NPT x 1/8" Male NPT
• - Pressure Rating: Class 3000, maximum pressure 2,570 psi at 100°F
• - Maximum Steam Pressure: 1,965 psi at 350°F
• - Hex Wrench Size: 7/8 inch across flats
• - Overall Length: 3/4 inch
• - Threads and dimensions comply with ASME B1.20.1 and ASME B16.11 standards
• - Color: Silver
• - Does not include pre-applied thread sealant or additional seals
