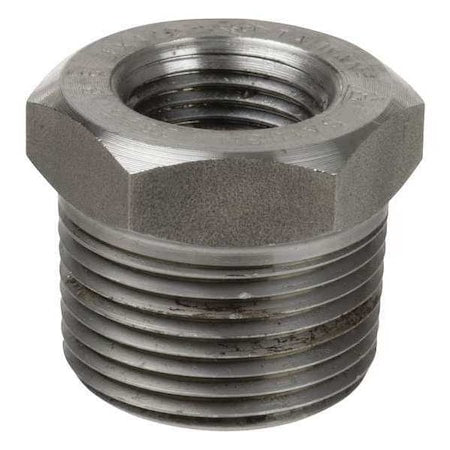

4307000274 - Hex Reducing Bushing, 304 Stainless Steel, 2-1/2 in x 1 in, Male NPT x Female NPT, Class 3000

The ZORO SELECT - 4307000274 is a stainless steel hex reducing bushing designed to connect pipes or fittings of different sizes. It features a hexagonal outer profile that allows tightening with a wrench; joint designed for threaded NPT connections; requires thread sealing; no pre-applied thread sealant. Constructed from 304 stainless steel; corrosion resistance and temperature tolerance are inherent material properties. The fitting has Male National Pipe Taper (MNPT) threads on the smaller end and Female NPT (FNPT) threads on the larger end, allowing adaption from a 2-1/2 inch female-threaded opening down to a 1 inch male-threaded connection.

Key Features:

• - Material: 304 Stainless Steel
• - Pipe Size (Fittings): 2-1/2" x 1"
• - Connection Types: MNPT (Male) on side A; FNPT (Female) on side B
• - Pressure Rating: Class 3000, Maximum Pressure 2,570 psi @ 100°F
• - Maximum Steam Pressure: 1,965 psi @ 350°F
• - Hex Size for wrenching: 3 in across flats
• - Overall Length: 1-7/16 in
• - Outside Diameter: 3 in
• - Threads conform to ASME B1.20.1 NPT; Material conforms to ASTM A182; Dimensions conform to ASME B16.11
• - Includes no pre-applied thread sealant or additional seals
