4381002470 - 3" Welded SS Socket Weld Flange
4381002470 - 3" Welded SS Socket Weld Flange
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

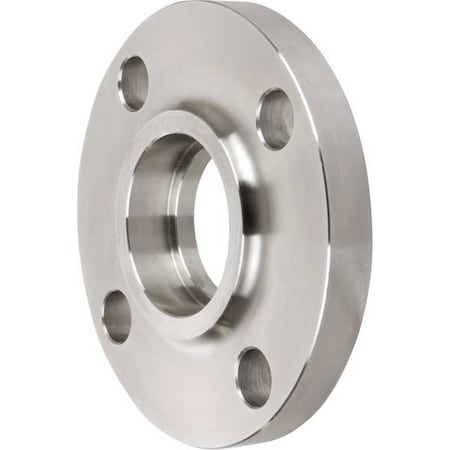

The ZORO SELECT - 4381002470 is a 316 stainless steel socket weld flange designed for use in piping systems requiring welded connections. The flange features a raised face and a recessed socket to accept the pipe end, which is then secured by a fillet weld to create a weld joint meeting standard welding specifications. This flange is rated to Class 150 standards with a maximum operating pressure of 150 psi and temperature range: -60 to 450 F. The flange has a nominal pipe size of 3 inches and an outside diameter of 7 1/2 inches, featuring four bolt holes for bolts to mating components.
Key Features:
- - Material: 316 Stainless Steel
- - Connection Type: Welded socket weld flange with a raised face surface.
- - Pressure Rating: Class 150, maximum operating pressure 150 psi.
- - Nominal Pipe Size: 3 inches.
- - Flange Outside Diameter: 7 1/2 inches.
- - Number of Bolt Holes: 4.
- - Temperature Range: -60 to 450 F.
- - Complies with ANSI B16.5 and ASTM A182 standards.
