4381004410 - 3/4" FNPT SS Threaded Flange
4381004410 - 3/4" FNPT SS Threaded Flange
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

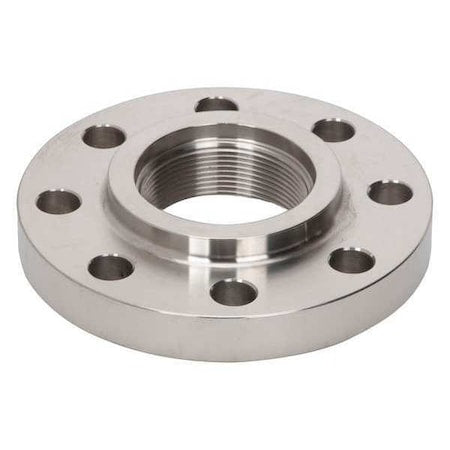

The ZORO SELECT - 4381004410 is a forged threaded flange made of 304/304L stainless steel, designed to connect pipes via internal threads without the need for welding. It features a raised face connection surface and is sized for a 3/4 in nominal pipe size. Bolted connections rated for Class 300 pressure; maximum operating pressure 720 psi; steam pressure 300 psi. Conforms to ASTM-SA182, ANSI B16.5, ASME B1.20.1 standards.
Key Features:
- - Material: Forged 304/304L Stainless Steel
- - Connection Type: Female National Pipe Thread (FNPT)
- - Pressure Class: Class 300
- - Nominal Pipe Size: 3/4 in
- - Flange Outside Diameter: 4 5/8 in
- - Bolt Circle Diameter: 3 1/4 in
- - Number of Bolt Holes: 4, each with a 3/4 in diameter
- - Flange Thickness: 9/16 in
- - Overall Length: 1 in
- - Connection Surface: Raised Face
- - Pressure Ratings: Maximum operating pressure 720 psi; maximum steam pressure 300 psi
- - Conforms to ASTM-SA182, ANSI B16.5, ASME B1.20.1 standards
