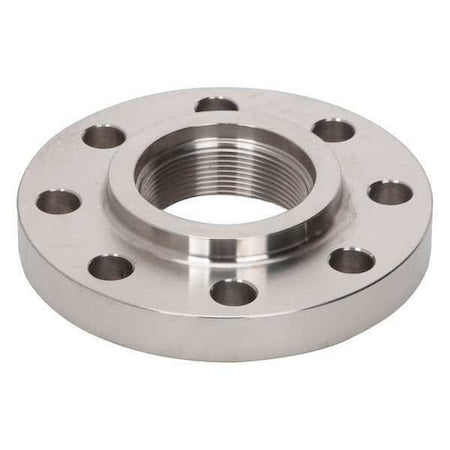

4381004480 - Flange, Stainless Steel, Threaded, 10 in
4381004480 - Flange, Stainless Steel, Threaded, 10 in
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.
The ZORO SELECT - 4381004480 is a forged threaded flange made from 304/304L forged stainless steel. It features internal threads that screw onto the male threads of a pipe, enabling bolted flange connections without welding. It is made from 304/304L forged stainless steel. It is designed for use with 4-inch nominal pipe size and incorporates a raised face connection surface.
Key Features:
- - Pipe fitting connection type: FNPT (Female National Pipe Thread)
- - Pressure rating: Class 300, with a maximum operating pressure of 720 psi
- - Maximum steam pressure: 300 psi
- - Flange outside diameter: 10 in
- - Flange thickness: 1 1/4 in
- - Bolt circle diameter: 7 7/8 in
- - Number of bolt holes: 8, each with a diameter of 7/8 in
- - Overall length: 1 7/8 in
- - Conforms to standards ASTM-SA182, ANSI B16.5, and ASME B1.20.1
