N/A 4381005420 - Flange, 4 7/8 in, Slip-On, SS
N/A 4381005420 - Flange, 4 7/8 in, Slip-On, SS
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

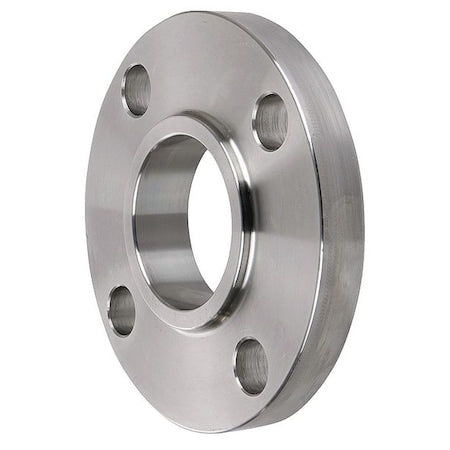

The ZORO SELECT 4381005420 is a stainless steel slip-on flange constructed from forged 316/316L stainless steel material. It features a bolt circle diameter of 3 1/2 inches, a bolt hole diameter of 3/4 inches, a flange outside diameter of 4 7/8 inches, and a flange thickness of 9/16 inches. This flange is designed to slip over a matching pipe and is secured with fillet welds on both sides. It is rated for operation at pressures up to 720 psi and steam pressure up to 300 psi. It has a nominal pipe size of 1 inch, with four bolt holes and four overall holes, suitable for low- to moderate-pressure systems, and complies with ASTM-SA182 and ANSI B16.5 standards.
Key Features:
- - Material: Forged 316/316L stainless steel offers corrosion resistance and strength.
- - Connection Type: Slip-On flange.
- - Pressure Rating: Rated for operation at pressures up to 720 psi and steam pressure up to 300 psi.
- - Bolt Circle Diameter: 3 1/2 in for bolt-hole alignment.
- - Flange Outside Diameter: 4 7/8 in, with a flange thickness of 9/16 in.
- - Bolt Hole Diameter: 3/4 in; Number of Bolt Holes: 4.
- - Standard Compliance: ASTM-SA182 and ANSI B16.5.
- - Overall Length: 1 1/16 in; Nominal Pipe Size: 1 in.
