4381006030 - 1-1/4" FNPT SS Threaded Flange
4381006030 - 1-1/4" FNPT SS Threaded Flange
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

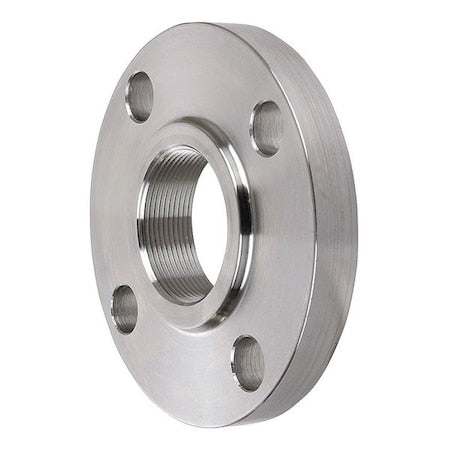

The ZORO SELECT - 4381006030 is a forged stainless steel threaded flange suitable for creating bolted flange connections within specified parameters by screwing the internal threads onto the male threads of a pipe. Made from forged 316/316L stainless steel, this flange has corrosion-resistant material suitable for use within systems operating at pressures up to specified limits; not intended as a guarantee of performance under all conditions. It features a raised face connection surface and is suitable for assembling and disassembling piping systems with nominal pipe size 1 1/4 inches, meeting the nominal pressure rating of Class 300 as per applicable standards.
Key Features:
- - Material: Forged 316/316L stainless steel
- - Type: Threaded flange with internal threads (FNPT connection)
- - Nominal pipe size: 1 1/4 in
- - Pressure rating: Class 300 with a maximum operating pressure of 720 psi
- - Maximum steam pressure: 300 psi at specified temperature conditions
- - Flange dimensions: 5 1/4 in outside diameter, 3/4 in thickness, and 1 1/16 in overall length
- - Bolt configuration: 4 bolt holes, each 3/4 in diameter, with a bolt circle diameter of 4 1/2 in
- - Connection surface: Raised face
- - Standards: ASTM-SA182; ANSI B16.5; ASME B1.20.1
