4381006040 - 1-1/2" FNPT SS Threaded Flange
4381006040 - 1-1/2" FNPT SS Threaded Flange
Couldn't load pickup availability
Ships factory-new in original packaging.
Not sure if a compatible flange, seal kit, or accessory exists for this item? Ask our team — we're happy to help you find the right part.
TIPS Contract Vendor
Officially awarded purchasing cooperative vendor.
Why Buy From Us
Every quote personally reviewed. Direct sourcing from top manufacturers.

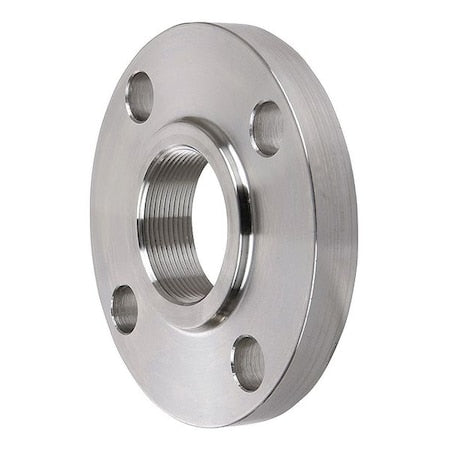

The ZORO SELECT - 4381006040 is a forged 316/316L stainless steel threaded flange with an FNPT connection to male National Pipe Thread (NPT) threads, forming a bolted flange joint without welding. It is constructed from forged 316 stainless steel (316/316L) and has a Class 300 pressure class. It features a raised face connection surface and conforms to ASTM-SA182, ANSI B16.5, and ASME B1.20.1 standards. The flange facilitates assembly and disassembly in piping systems where welding or heat application is impractical. Key Features:
- - Nominal Pipe Size: 1 1/2 in
- - Maximum Operating Pressure: 720 psi
- - Maximum Steam Pressure: 300 psi
- - Flange Outside Diameter: 6 1/8 in
- - Bolt Circle Diameter: 3 7/8 in
- - Number of Bolt Holes: 4 with 7/8 in diameter each
- - Flange Thickness: 3/4 in
- - Connection Type: Female National Pipe Thread (FNPT)
- - Material: Forged 316 Stainless Steel (grade 316/316L)
- - Product Type: Threaded Flange
- - Pressure Class: Class 300
