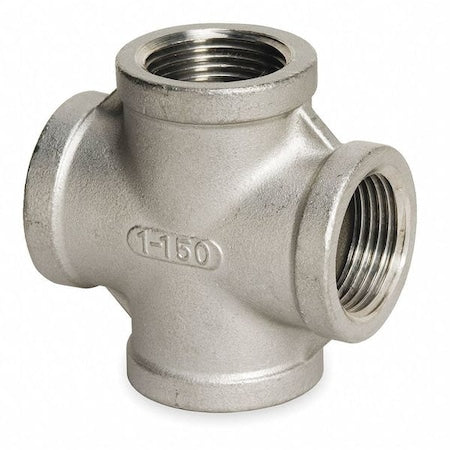

4381037800 - Cross, SS, Thrd 1/8", Thrd 1/8"

The ZORO SELECT 4381037800 is a stainless steel pipe fitting made from 316 stainless steel. It features four openings arranged at 90° in one plane and is designed to connect or split flow among four pipe runs. It is designed to operate within the specified pressure ranges of up to 300 psi and steam pressure up to 150 psi. This fitting is rated as Class 150 and includes FNPT connections, with each side typically accommodating nominal pipe sizes of 1/8 inch and outside diameters of 4 inches. The cross is compatible with systems requiring four-line intersections in plumbing, HVAC, or industrial process piping.

Key Features:

• - Made from 316 stainless steel for corrosion resistance and durability.
• - Designed to operate within the specified pressure ranges of up to 300 psi and steam pressure up to 150 psi.
• - Class 150 pressure-rating conformity and standards compliance with ASTM-A-351, ANSI B1.20.1, and MSS-SP-114.
• - Features four openings arranged at 90° with FNPT connection type.
• - Ends have female gender connections with nominal size of 1/8 inch and outside diameter of 4 inches.
• - Overall length of 1 3/8 inches and outside diameter of 5/8 inches.
