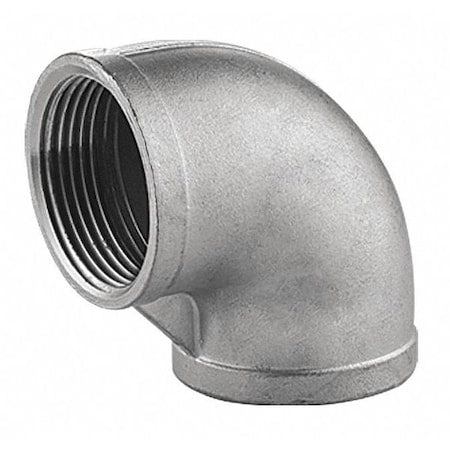

609E111N034 - 3/4 in FNPT 316 Stainless Steel 90° Elbow, Class 150, Female Threaded

The ZORO SELECT - 609E111N034 is a 3/4" stainless steel 90 Degree Elbow pipe fitting designed to connect two pipes at a right angle, creating a 90° change in flow direction. Constructed from 316 stainless steel, Media compatibility: air, natural gas, non-potable water, oil, potable water, and steam within specified pressure ratings (up to 300 psi operating pressure and 150 psi steam pressure). Operating pressure: 300 psi; Maximum steam pressure: 150 psi. It features female National Pipe Thread (FNPT) connections on both ends with 14 threads per inch and meets ANSI B1.20.1 standards. Key Features:

• - Material: 316 Stainless Steel
• - Pipe Size: 3/4" nominal for both ends
• - Connection Type: Female NPT threaded ends on both sides
• - Pressure Rating: Class 150 with maximum operating pressure of 300 psi
• - Maximum Steam Pressure: 150 psi
• - Pipe Threading: 14 TPI on both connections
• - Applications: Compatible with air, natural gas, non-potable water, oil, potable water, and steam
• - Compliance: Meets ANSI B1.20.1 standards and low-lead requirements
• - Includes no pre-applied thread sealant or sealing components
• - Color: Silver
