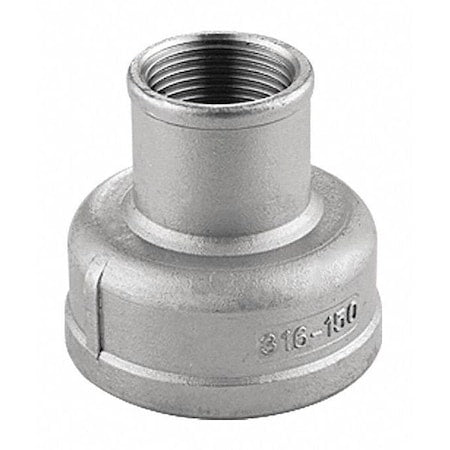

N/A 60RC111N112034 - 1-1/2" x 3/4" FNPT 316 SS Reducing Coupling

The ZORO SELECT - 60RC111N112034 is a stainless steel reducing coupling designed to join pipes of different diameters, providing a compact transition in a piping system. Constructed from 316 stainless steel, it has corrosion resistance properties typical of 316 stainless steel and a Class 150 pressure rating. The fitting features female National Pipe Taper (NPT) threaded connections on both ends, sized 1-1/2 inches on one side and 3/4 inch on the other, suitable for conveying Air, Non-Potable Water, Oil, Potable Water, and Steam. It complies with low-lead requirements and conforms to ASTM-A-351 for material, ASME B1.20.1 for threads, and MSS-SP-114 Class 150 pressure standards. Key Features:

• - Material Grade: 316 Stainless Steel
• - Connection Type: Female NPT threads on both ends
• - Nominal Pipe Sizes: 1-1/2" side A by 3/4" side B
• - Pipe Schedule/Class: Class 150 pressure rating
• - Maximum Operating Pressure: 300 psi
• - Maximum Steam Pressure: 150 psi
• - Overall Length: 57 mm
• - Applications include Air, Non-Potable Water, Oil, Potable Water, and Steam
• - Thread Size: 14 TPI on both ends
• - Color: Silver
• - Standards Compliance: ASTM-A-351, ASME B1.20.1, MSS-SP-114 Class 150
• - Does not include pre-applied thread sealant or additional seals
