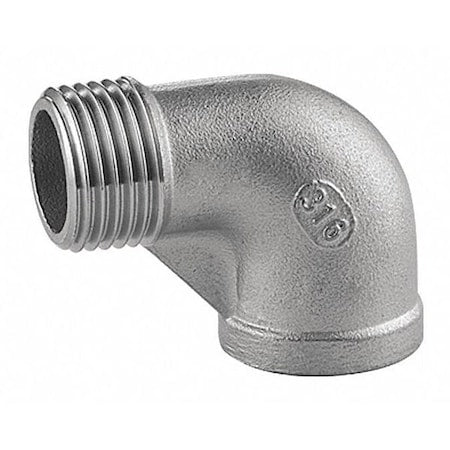

60SE113N018 - 1/8 in 316 Stainless Steel Street Elbow, Male NPT x Female NPT, Class 150

The ZORO SELECT - 60SE113N018 is a 316 stainless steel street elbow pipe fitting designed to change the direction of flow with a combination of one male (street) and one female (socket) NPT threaded end. This configuration allows direct connection between a pipe and another fitting without the need for a short nipple. Rated for use with air, natural gas, non-potable water, oil, potable water, and steam within Class 150 pressure rating, and can operate up to 300 psi. The fitting meets ANSI Standards B1.20.1 and Class 150.

Key Features:

• - Fits 1/8 in nominal pipe size with 1/8 in NPT threads on both ends.
• - Side A connection: Male NPT thread with 27 threads per inch.
• - Side B connection: Female NPT thread with 27 threads per inch.
• - Material: 316 stainless steel
• - Pressure ratings: Class 150 with maximum operating pressure of 300 psi and steam pressure rating of 150 psi.
• - Does not include pre-applied thread sealant or additional sealing components.
• - Color: Silver.
• - Compliant with low lead requirements for potable water systems.
