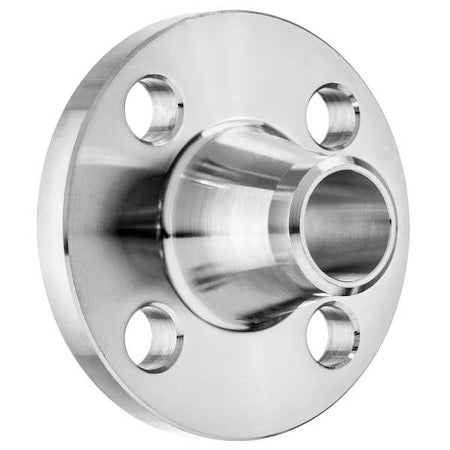

BULK-PF-780 - Weld Neck Flange, 316 Stainless Steel, 1 in Nominal Pipe Size, Class 1500, Raised Face

The ZORO SELECT - BULK-PF-780 is a stainless steel pipe flange designed as a weld neck flange for creating boltable connections. It features a raised face connection surface and is constructed from 316-grade stainless steel. This pipe flange is intended for use with 1-inch nominal pipe size and is rated at Class 1500 within specified operating parameters. It is configured for use with air, natural gas, oil, and potable water within the specified operating conditions. The flange offers corrosion-resistant material (316 stainless steel) and is manufactured in accordance with industry standards for potable water systems. It meets several industry standards including ASME B16.5, ASTM A182, MSS SP-25, and MSS SP-6.

Key Features:

• - Material Grade: 316 stainless steel.
• - Nominal Pipe Size: 1 in.
• - Pressure Rating: Class 1500.
• - Number of Bolt Holes: 4.
• - Bolt Hole Diameter: 7/8 in.
• - Flange Outside Diameter: 5 7/8 in.
• - Connection Surface: Raised Face.
• - Fitting Connection Type: Flanged x Weld Neck.
• - For Pipe Schedule: XXH.
• - Applications include air, natural gas, oil, and potable water.
• - Standards: ASME B16.5; ASTM A182; MSS SP-25; MSS SP-6.
